Start here

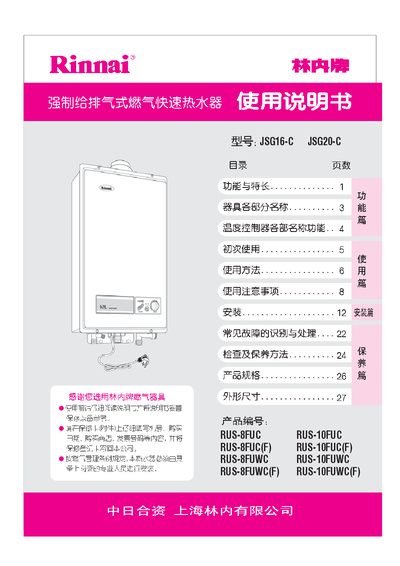

Rinnai JSG16-C & JSG20-C User Manual
This manual provides the essential information for operating the Rinnai JSG16-C and JSG20-C water heaters. It includes model overviews, performance data, and electrical requirements.
Key specifications such as maximum input power, water production rates, operating pressure ranges, and voltage requirements are listed for each model, helping users select the appropriate configuration and ensure safe operation.
Rinnai JSG20-C specifications
| Maximum Input Power (JSG16-C) | 15.8 kW (56.9 MJ/h) |
|---|---|
| Maximum Input Power (JSG20-C) | 19.5 kW (70.2 MJ/h) |
| Water Production Rate (JSG16-C) | 1.2 kg/h |
| Water Production Rate (JSG20-C) | 1.5 kg/h |
| Operating Pressure | 1 kPa – 2.8 kPa |
| Electrical Voltage | AC 220 V / 50 Hz |
| Power Consumption | 65 W – 70 W |
All Rinnai JSG20-C documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum input power for the JSG16-C model?
The JSG16‑C model has a maximum input power of 15.8 kW (56.9 MJ/h).
What is the maximum input power for the JSG20-C model?
The JSG20‑C model has a maximum input power of 19.5 kW (70.2 MJ/h).
What safety protection features does the heater have?
The unit includes flame‑out protection, over‑heat protection, over‑pressure protection, fan‑stop safety, over‑current protection, and anti‑dry‑burn safety devices.
How can I adjust the water flow rate?
Rotate the water‑volume knob clockwise for a smaller flow and counter‑clockwise for a larger flow.
