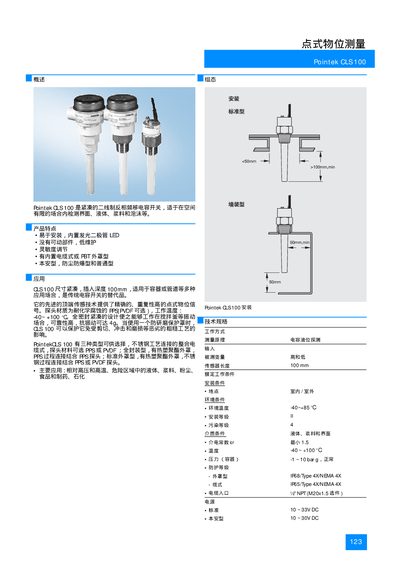

Pointek CLS100 Capacitive Switch User Manual
The Pointek CLS100 is a compact two‑wire capacitive level switch designed for detecting interfaces, liquids, slurries and foams in space‑constrained installations. It offers LED indication, no moving parts, and selectable probe materials (PPS, PVDF) with options for standard, explosion‑proof, and intrinsically safe versions.
The manual covers product features, technical specifications, wiring and output options (4‑20 mA, 0‑20 mA, transistor), installation guidelines, certification details (IP68, ATEX, IECEx) and ordering information, helping users integrate the switch safely and reliably into their processes. This manual is written in Chinese.
Pointek CLS 100 specifications
| Sensor length | 100 mm |
|---|---|
| Operating temperature range | -40 °C to +85 °C |
| Power supply (standard version) | 10 V DC to 33 V DC |
| Power supply (intrinsically safe version) | 10 V DC to 30 V DC |
| Output signal options | 4‑20 mA loop, 0‑20 mA, 20‑4 mA, transistor output |
| Body material | 316 stainless steel (1.4404) |
| Pressure rating | -1 bar to 10 bar gauge |
| Protection rating | IP68 / NEMA 4X (standard), IP65 / NEMA 4X (cable type) |
| Dielectric constant (minimum) | 1.5 |
| Cable entry size | M20 × 1.5 mm (NPT) |
All Pointek CLS 100 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the operating temperature range of the CLS100?
The CLS100 can operate from –40 °C up to +85 °C.
What power supply voltage does the CLS100 require?
The standard version requires a DC supply of 10 V to 33 V, while the intrinsically safe version uses 10 V to 30 V DC.
What IP rating does the CLS 100 have?
It is rated IP65/Type 4X/NEMA 4X.
What output voltage does the standard CLS 100 provide?
The standard model supplies a voltage output of 10 V to 33 V DC.
