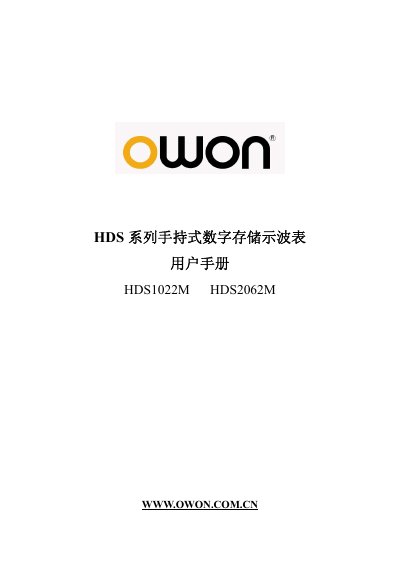

OWON HDS1022M / HDS2062M Handheld Digital Storage Oscilloscope User Manual
This manual covers safety information, basic inspection, connection procedures, and step‑by‑step operation of the OWON HDS series handheld digital storage oscilloscopes. It includes detailed instructions for using the oscilloscope functions, multimeter capabilities, and advanced measurement features.
Appendices provide the full technical specifications, maintenance guidelines, battery charging instructions, and warranty details. The document is intended for end users and field technicians who need to set up, operate, and maintain the HDS1022M and HDS2062M models safely and effectively. This manual is written in Chinese.
OWON HDS1022M specifications
| Sampling rate | 100 MSa/s (HDS1022M), 250 MSa/s (HDS2062M) |
|---|---|
| Input impedance | 1 MΩ ± 2% in parallel with 20 pF ± 5 pF |
| Maximum input voltage | 400 V peak |
| Battery | 7.4 V rechargeable Li‑ion battery |
| Dimensions | 18 cm × 11.5 cm × 4 cm |
| Weight | 645 g |
Source: OWON HDS1022M / HDS2062M Handheld Digital Storage Oscilloscope User Manual
All OWON HDS1022M documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How long should the battery be charged before first use?
Charge the battery for four hours with the instrument turned off; after a full charge the battery can power the device for about four hours.
From: OWON HDS1022M / HDS2062M Handheld Digital Storage Oscilloscope User Manual
What is the maximum input voltage the oscilloscope can safely measure?
The instrument can safely measure up to 400 V peak input voltage.
From: OWON HDS1022M / HDS2062M Handheld Digital Storage Oscilloscope User Manual
What is the warranty period for the HDS1022M?
The oscilloscope is covered by a three‑year warranty, accessories have a one‑year warranty, and parts and repair are covered for 90 days.
From: OWON HDS1022M Handheld Digital Storage Oscilloscope User Manual
What is the maximum input voltage the oscilloscope can handle?
The instrument can accept a maximum input voltage of 400 V peak.
From: OWON HDS1022M Handheld Digital Storage Oscilloscope User Manual
