Key facts
- Brand
- Kenic
- Model
- KS-LCTQ-2P
- Category
- Other Electronics
- Documents
- 2
- Languages
- JA
- Last added
- 2012-01-07
Start here

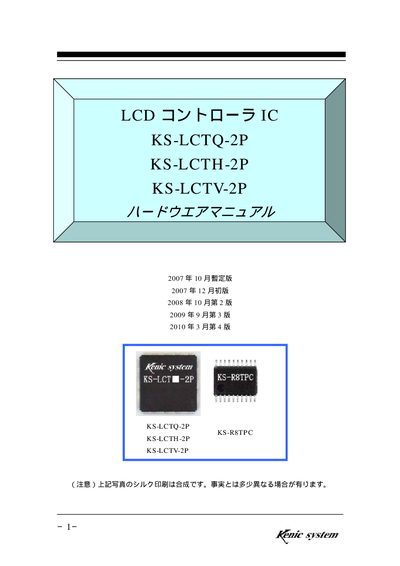

KS-LCTQ-2P, KS-LCTH-2P, KS-LCTV-2P LCD Controller ICs Manual
This document introduces the KS‑LCTQ‑2P, KS‑LCTH‑2P and KS‑LCTV‑2P LCD controller ICs and the KS‑R8TPC touch‑panel controller. It provides a product overview, key features, electrical characteristics, address map, register description, mechanical dimensions and design considerations for developers integrating these devices.
The manual also includes detailed pin‑assignment tables, recommended implementation circuits, and notes on handling, environmental limits and vibration concerns. It explains how to connect external analog signals, use PWM and INTOUT ports, and configure the controller for various LCD panels such as QVGA, HVGA and VGA. This manual is written in Japanese.
Kenic KS-LCTQ-2P specifications
| Supported LCD resolutions | KS-LCTQ-2P: 320×240, KS-LCTH-2P: 640×240, KS-LCTV-2P: 640×480 |
|---|---|
| Color palette per page | 64 colors × 2 pages (4096 colors total) |
| External analog inputs | 2 channels, 8‑bit A/D conversion |
| PWM output port | Available for LED backlight dimming |
| INTOUT output port | Active‑LOW interrupt signal |
| Touch panel controller ADC | 2‑channel 8‑bit A/D converter (Renesas RSF211B4SP) |
Source: KS-LCTQ-2P, KS-LCTH-2P, KS-LCTV-2P LCD Controller ICs Manual
All Kenic KS-LCTQ-2P documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What LCD resolutions are supported by the KS‑LCTQ‑2P, KS‑LCTH‑2P and KS‑LCTV‑2P?
KS‑LCTQ‑2P supports 320×240, KS‑LCTH‑2P supports 640×240, and KS‑LCTV‑2P supports 640×480 pixel displays.
From: KS-LCTQ-2P, KS-LCTH-2P, KS-LCTV-2P LCD Controller ICs Manual
How many colors can be displayed simultaneously?
The controllers use a palette method that allows 64 colors per page across 2 pages, giving a total of 4096 colors.
From: KS-LCTQ-2P, KS-LCTH-2P, KS-LCTV-2P LCD Controller ICs Manual
Which LCD panels are compatible with the KS-LCTQ-2PA controller?
It supports Optrex color QVGA TFT LCDs (e.g., T‑55265GD0571J‑LW series) and Sharp color QVGA TET LCDs (e.g., LQ057Q3DC series).
What microcontrollers can interface with the KS-LCTQ-2PA?
The controller is compatible with Hitachi H8 and SH microcontrollers operating at 3.3 V.
