Key facts
- Brand
- IFLYTEK
- Model
- XFS3031CN
- Category
- Audio Codec
- Industry
- Electronics
- Documents
- 2
- Languages
- ZH
- Last added
- 2011-09-21
Start here

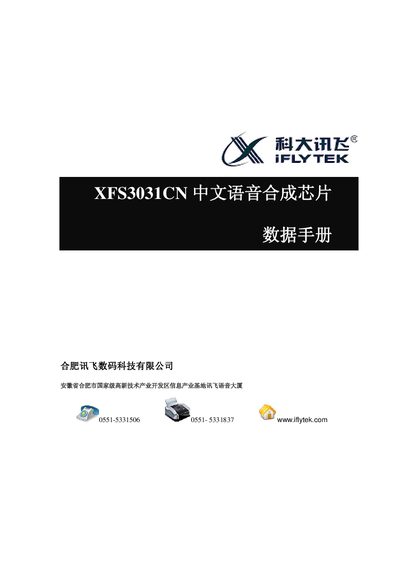

iFlytek XFS3031CN Chinese Voice Synthesis Chip Datasheet
The XFS3031CN is a Chinese voice synthesis chip from iFlytek Digital Technology Co., Ltd. It receives text via a UART interface and outputs synthesized speech. The chip supports multiple character encodings (GB2312, GBK, BIG5, Unicode) and offers various control commands such as synthesize, stop, pause, resume, and power‑down.
The datasheet provides detailed pin definitions, packaging information (LQFP64, 10 mm × 10 mm × 1.4 mm), electrical characteristics, and a list of built‑in sound and chord prompts. It also describes hardware and software methods for querying chip status and outlines ordering information. This manual is written in Chinese.
IFLYTEK XFS3031CN specifications
| Package | LQFP64, 64 pins, 10 mm × 10 mm × 1.4 mm |
|---|---|
| Maximum text length per synthesis | 199 bytes |
| Supported character encodings | GB2312, GBK, BIG5, Unicode |
| Volume levels | 16 levels |
| Built‑in prompt sounds | 7 sound prompts and 30 chord prompts |
Source: iFlytek XFS3031CN Chinese Voice Synthesis Chip Datasheet
All IFLYTEK XFS3031CN documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
How many pins does the XFS3031CN chip have?
The chip is packaged in an LQFP64 with 64 pins.
From: iFlytek XFS3031CN Chinese Voice Synthesis Chip Datasheet
Which command stops the current synthesis?
The "停止合成命令" (stop synthesis command) stops the current synthesis action.
From: iFlytek XFS3031CN Chinese Voice Synthesis Chip Datasheet
What communication interface does the XFS3031CN use?
The chip uses a UART interface for receiving text and sending data.
From: iFlytek XFS3031CN Chinese Voice Synthesis Chip Datasheet
How many built‑in prompt sounds are available on the chip?
It includes 7 sound prompts and 30 chord prompts that can be used for notifications.
From: iFlytek XFS3031CN Chinese Voice Synthesis Chip Datasheet
