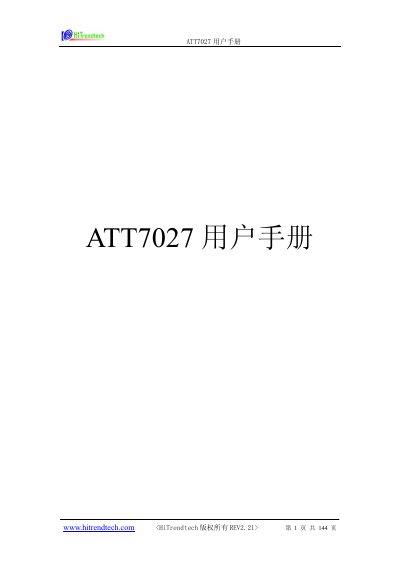

HiTrendtech ATT7027 User Manual
This manual describes the ATT7027 system‑on‑chip, a low‑power, high‑performance single‑phase energy‑metering solution that integrates measurement, processor, LCD driver, and real‑time clock functions. It includes a detailed description of the chip architecture, pin layout, and functional blocks such as ADC, UART, GPIO, PWM, and power‑saving modes.
The document also covers the interrupt system, reset behavior, programming modes, on‑chip ICE support, and mechanical specifications. Appendices provide step‑by‑step instructions for using a super‑terminal to configure baud rates, load HEX files, and switch between user‑application and flash‑programming modes. This manual is written in Chinese.
HiTrendtech ATT7027 specifications
| Operating voltage range | 2.7 V‑3.6 V |
|---|---|
| Operating temperature range | -40 °C to 85 °C |
| Package | Lead‑free LQFP64 |
| Typical active current | < 6 mA |
| Low‑speed current consumption | < 80 µA |
Source: HiTrendtech ATT7027 User Manual
All HiTrendtech ATT7027 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How can I change the UART baud rate?
The baud rate can be set to other values such as 4800 or 19200 in the super‑terminal configuration.
What are the steps to program the ATT7027 with a HEX file?
Enter “M0000”, then “M8000”, then “E”, and finally “L” to send the HEX file; all commands must be uppercase.
What is the operating voltage range of the ATT7027?
The ATT7027 operates from 2.7 V to 3.6 V.
What package type does the ATT7027 use?
It is supplied in an LQFP64 package.
