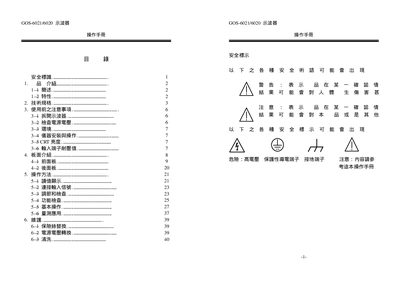

GOS GOS-6021/6020 Oscilloscope Operating Manual
The document begins with an introduction to the GOS‑6021/6020 oscilloscope, describing its dual‑channel 20 MHz bandwidth, CRT display, and built‑in frequency counter. It lists technical specifications such as input voltage limits, impedance, power consumption, dimensions, and environmental limits.
Subsequent sections cover safety warnings, panel layout, detailed operation methods (signal connection, vertical/horizontal controls, cursor measurements), and a maintenance chapter that includes fuse replacement, power‑supply adjustment, and cleaning instructions for qualified service personnel. This manual is written in Chinese.
GOS-6021 specifications
| Bandwidth | DC~20 MHz |
|---|---|
| Input Impedance | ≈ 47 kΩ |
| Vertical Sensitivity Range | 1 mV – 20 V |
| Horizontal Time Base Range | 0.2 µs – 0.5 s |
| Power Consumption | ≈ 60 VA, 50 W (max) |
| CRT Size | 6‑inch square CRT |
| Frequency Counter Accuracy | ±0.01 % |
| Dimensions | 275 mm × 130 mm × 370 mm |
| Operating Temperature Range | 0 °C – 40 °C |
All GOS-6021 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I change the power‑supply voltage setting?
Select the appropriate voltage on the rear‑panel selector switch and replace the fuse with the correct rating if needed.
How can I store and recall panel settings?
The instrument has ten non‑volatile memory slots; press the SAVE/RECALL button and choose a number to store or recall a setting.
