Key facts
- Brand
- GA-8IE2004P(-L)
- Model
- GA-8IE2004P(-L)
- Category
- Board
- Industry
- Computers
- Documents
- 2
- Languages
- ZH
- Last added
- 2011-09-23
Start here
GA-8IE2004P(-L) P4 Titans DDR system board chinese installation Manual
This manual provides step‑by‑step installation instructions for the Gigabyte GA-8IE2004P(-L) motherboard, including CPU, memory, AGP and PCI slot placement, power connections and I/O cabling. It also contains the board layout diagrams and jumper settings needed for proper assembly.
Technical details such as the Intel 82845E chipset, Socket478 for Pentium 4 processors, supported 2.5 V DDR DIMM modules up to 2 GB, and AGP 4X (1.5 V) operation are listed, along with compliance declarations for EMC and safety standards. This manual is written in Chinese.
GA-8IE2004P(-L) GA-8IE2004P(-L) specifications
| CPU Socket | Socket478 Intel Micro FC‑PGA2 Pentium 4 |
|---|---|
| Chipset | Intel 82845E HOST/AGP/Controller |
| Memory Type | 2.5 V DDR DIMM |
| AGP Version | AGP 4X (1.5 V) |
Source: GA-8IE2004P(-L) P4 Titans DDR system board chinese installation Manual
All GA-8IE2004P(-L) GA-8IE2004P(-L) documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What CPU socket does the GA-8IE2004P(-L) motherboard use?
It uses a Socket478 Intel Micro FC‑PGA2 socket for Pentium 4 processors.
From: GA-8IE2004P(-L) P4 Titans DDR system board chinese installation Manual
Which chipset is integrated on this motherboard?
The board is built around the Intel 82845E HOST/AGP/Controller chipset.
From: GA-8IE2004P(-L) P4 Titans DDR system board chinese installation Manual

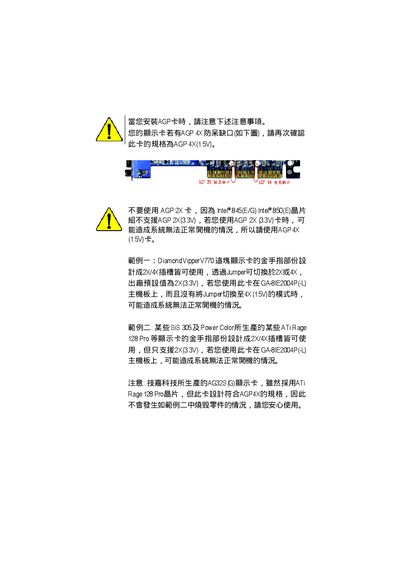

Can I use an AGP 2X graphics card with this motherboard?
No. The board only supports AGP 4X (1.5 V) cards; using an AGP 2X card may prevent the system from booting.
From: GA-8IE2004P(-L) P4 Titans DDR system board chinese installation Guide
What CPU does the GA-8IE2004P(-L) motherboard support?
It is designed for Pentium processors.
From: GA-8IE2004P(-L) P4 Titans DDR system board chinese installation Guide
