Key facts
- Brand
- FUJI Motor
- Model
- PXR9
- Industry
- Industrial
- Documents
- 2
- Languages
- EN
- Last added
- 2012-03-20
Start here

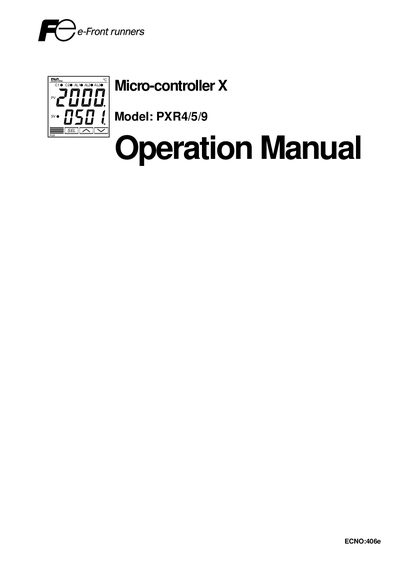

Fuji Electric PXR4/5/9 Operation Manual
User Manual 83 pages · 1.6 MB · EN
This manual describes the functions, operation procedures, and parameter settings for the Fuji Electric PXR series temperature controllers (models PXR4, PXR5, and PXR9). It covers front‑panel layout, input signal selection, control output configuration, and communication options.
Key sections include part names and functions, detailed parameter lists, basic operations such as manual/auto mode, ramp‑soak control, alarm handling, and safety precautions for installation and use.
FUJI Motor PXR9 specifications
| Front dimensions (PXR4) | 48 × 48 mm |
|---|---|
| Front dimensions (PXR5/9) | 48 × 96 mm / 96 × 96 mm |
| Input signal – Thermocouple (°C) | Supported |
| Input signal – Resistance bulb Pt100 (3‑wire, °C) | Supported |
| Control output 1 – Relay contact | Available |
| Control output 2 – Relay contact | Available |
| Power supply voltage | 100‑240 V AC or 24 V DC |
| Communication protocol | RS485 Modbus and RS485 ASCII |
All FUJI Motor PXR9 documents by type
User Manual 2
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How can the alarm latch be cancelled?
Use the Canceling the alarm latch function on the front panel.
What are the front panel dimensions of the PXR4 model?
The PXR4 front panel measures 48 mm × 48 mm.
