Start here

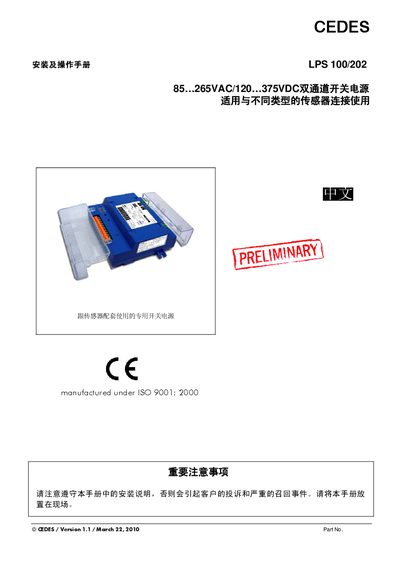

CEDES LPS 100/202 Dual-Channel Switching Power Supply Installation and Operation Manual
This manual explains how to safely install and operate the CEDES LPS 100/202 dual‑channel switching power supply, which is designed for use with light curtains and infrared photoelectric sensors. It includes safety warnings, required qualifications for installers, and environmental restrictions.
The document covers step‑by‑step installation, electrical wiring, relay output configuration, troubleshooting procedures, and detailed technical data such as input voltage range, output ratings, and environmental limits. This manual is written in Chinese.
Cedes LPS 100 specifications
| Input voltage range | 85‑265 VAC / 120‑375 VDC |
|---|---|
| AC input frequency | 47‑63 Hz |
| Max input current (full load) | 1000 mA @ 24 VDC |
| DC output | 24 VDC, 1 A max |
| Maximum sensor connections | 2 |
| Relay output rating | 125 VAC / 9 A |
| Relay contact capacity | 277 VAC / 7 A |
| Operating temperature range | -20 °C to +65 °C |
| Storage temperature range | -30 °C to +80 °C |
| Waterproof rating | IP33 |
| Fire rating | UL94 V‑0 |
Source: CEDES LPS 100/202 Dual-Channel Switching Power Supply Installation and Operation Manual
All Cedes LPS 100 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many sensors can be connected to the LPS 100/202?
The power supply can be connected to a maximum of two sensors.
From: CEDES LPS 100/202 Dual-Channel Switching Power Supply Installation and Operation Manual
What are the relay output ratings of the LPS 100/202?
The relay output is rated at 125 VAC / 9 A, with a contact capacity of 277 VAC / 7 A.
From: CEDES LPS 100/202 Dual-Channel Switching Power Supply Installation and Operation Manual
