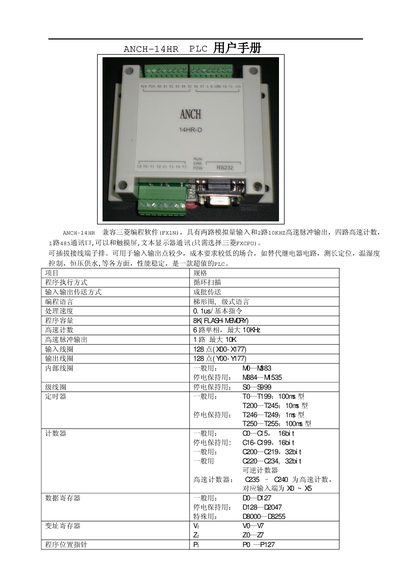

ANCH-14HR PLC User Manual
User Manual 3 pages · 120 KB · ZH
The ANCH-14HR is a compact PLC with two RS‑232/RS‑485 communication ports, a 24 V DC power supply, and a range of digital and analog I/O. It supports ladder‑logic and structured‑text programming and is compatible with Mitsubishi GX Developer 8.52 software.
The manual details the instruction set, high‑speed counting and pulse output capabilities, wiring diagrams, and step‑control functions, allowing users to configure, program, and troubleshoot the controller efficiently. This manual is written in Chinese.
ANCH-14HR specifications
| Program execution mode | Cyclic scan |
|---|---|
| I/O transfer mode | Batch transfer |
| Programming language | Ladder diagram, structured text |
| Processing speed | 0.1 µs per basic instruction |
| Program capacity | 8 KB FLASH memory |
| High‑speed counting channels | 6 channels, max 10 kHz |
| High‑speed pulse output | 1 channel, max 10 kHz |
| Digital inputs | 128 points |
| Digital outputs | 128 points |
| Analog output | PNM‑Y0 output |
| Power supply | 24 V DC, 200 mA |
Source: ANCH-14HR PLC User Manual
All ANCH-14HR documents by type
User Manual 1
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Other documents 1
Questions answered in these manuals
How many digital input points does the ANCH-14HR have?
The controller provides 128 digital input points.
What is the processing speed of the PLC?
The basic instruction execution time is 0.1 µs.
