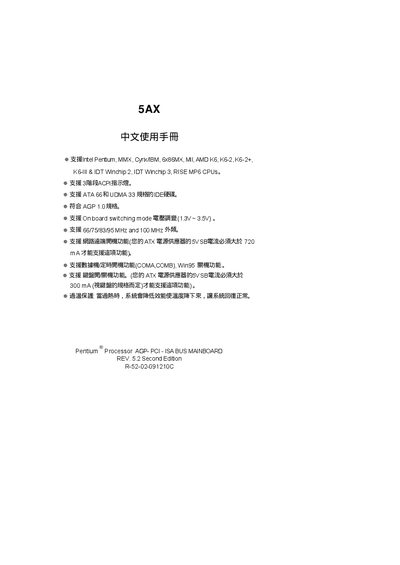

5AX Motherboard User Manual
This manual provides installation instructions and configuration tables for the 5AX motherboard, including supported CPUs, chipset features, and voltage settings. It details CPU setting tables, supported interfaces such as ATA66, UDMA33, AGP 1.0, and on‑board voltage ranges.
The document also contains compliance declarations, EMC and safety standards, and required power‑supply currents for network boot and keyboard power‑on/off functions. This manual is written in Chinese.
5AX specifications
| Supported CPUs | Intel Pentium, MMX, Cyrix IBM, 6x86MX, AMD K6, K6-2, K6-2+, IDT Winchip 2, Winchip 3, RISE MP6 |
|---|---|
| ACPI Indicator | 3‑stage |
| IDE Interface | ATA66, UDMA33 |
| AGP | 1.0 |
| On‑board Voltage | 1.3V–3.5V |
| External Clock Frequencies | 66, 75, 83, 95, 100 MHz |
| Network Boot Current Requirement | ≥720 mA (5VSB) |
| Over‑Temperature Protection | Reduces performance to lower temperature |
