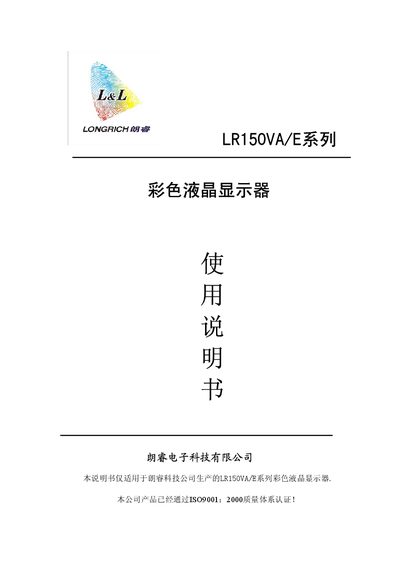

Longrich LR-150VA/E Industrial Color LCD Display User Manual
The LR-150VA/E series is an industrial color LCD display with a 15‑inch TFT panel, 1024×768 resolution and a single 12 V DC power supply. It supports VGA, video and BNC inputs and can be ordered with or without an enclosure.
The manual provides product introduction, performance parameters, component list, connection instructions, installation dimensions, after‑sales support, transportation handling, storage guidelines, safety precautions, and optional touch‑screen specifications. This manual is written in Chinese.
朗睿电子 LR150VA specifications
| Overall dimensions | 375 mm × 370 mm × 140 mm |
|---|---|
| Viewable size | 304.1 mm × 228.1 mm |
| Resolution | 1024 × 768 |
| Pixel size | 0.297 mm × 0.297 mm |
| Input signals | VGA, video, BNC |
| Viewing angle | 80° horizontal, 60° vertical |
| Operating temperature | -20 °C to +70 °C |
| Storage temperature | -20 °C to +80 °C |
| Brightness | 450 cd/m² |
| MTBF (continuous) | >50 000 h |
| MTBF (standby) | >25 000 h |
| Optional interface | RS‑232 / USB |
Source: Longrich LR-150VA/E Industrial Color LCD Display User Manual
All 朗睿电子 LR150VA documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the warranty period for the LR-150VA/E display?
The warranty lasts for one year from the date of purchase.
From: Longrich LR-150VA/E Industrial Color LCD Display User Manual
What power supply does the display require?
It operates from a single 12 V DC power source.
From: Longrich LR-150VA/E Industrial Color LCD Display User Manual
What is the warranty period for the LR150VA/E display?
The display is covered by a one‑year warranty from the date of purchase.
What power supply does the display require?
The display operates on a DC 12 V power supply.
