Step‑by‑step guide for unpacking, installing, wiring, adding hydraulic oil, power setup, grounding, pump direction check, counter configuration, safety…

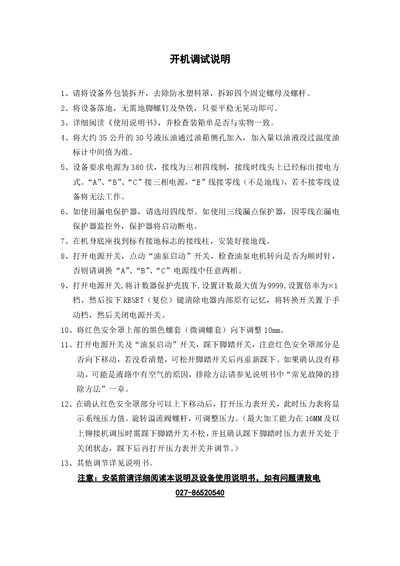

This manual explains how to safely start up and commission the equipment. It covers unpacking, removal of protective covers, placement on a stable floor, and verification of the packing list.
Key procedures include adding approximately 35 L of 30# hydraulic oil, connecting a 380 V three‑phase four‑wire power supply with a neutral line, grounding, checking pump rotation, setting the counter, adjusting the safety shield, and performing pressure tests. Troubleshooting tips are provided for common issues such as air in the hydraulic circuit. This manual is written in Chinese.
| Power supply voltage | 380 V three‑phase four‑wire |
|---|---|
| Neutral line requirement | Neutral (E) line must be connected |
| Hydraulic oil quantity | ≈35 L of 30# hydraulic oil |
| Maximum counter value | 9999 |
| Counter multiplier | ×1 |
| Safety shield adjustment | 10 mm downward |
| Maximum processing capability | ≥16 mm rivet size |
Add about 35 liters of 30# hydraulic oil until the oil level reaches the middle of the temperature oil gauge.
Turn on the power and the pump start switch; the pump motor should rotate clockwise. If it rotates the other way, swap any two of the A, B, C phase wires.
Check for air in the hydraulic circuit and follow the troubleshooting steps in the manual’s ‘Common Faults’ chapter.
