User manual for the 魔音 变色龙升级版 effects pedal, covering features, wiring diagram, functions, specs and typical connections.

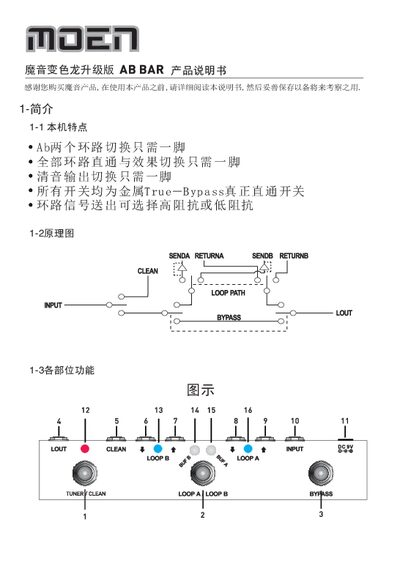

The manual introduces the 魔音 变色龙升级版 effects pedal, highlighting its all‑metal switches, true‑bypass routing and single‑foot control of loop selection and clean output. It provides a schematic diagram and describes each section of the unit, including loop switching, clean signal routing and impedance options.
Technical parameters such as dimensions, weight and power requirements are listed, followed by typical wiring configurations for one guitar to two amps, two guitars to two amps, and three guitars to two amps. Users are encouraged to design custom connections to suit their setups. This manual is written in Chinese.
| Dimensions | 20 cm × 4.5 cm × 5.5 cm |
|---|---|
| Weight | 200 g |
| Power input | 10 mA, DC 9‑12 V (outer positive, inner negative) |
The unit measures 20 cm long, 4.5 cm wide and 5.5 cm high.
It weighs about 200 grams.
It needs a DC supply of 9‑12 V with a current draw of 10 mA, wired with outer positive and inner negative.
Yes, the manual shows several typical connections, such as one guitar to two amps, two guitars to two amps, and three guitars to two amps, and users can design other configurations as needed.
