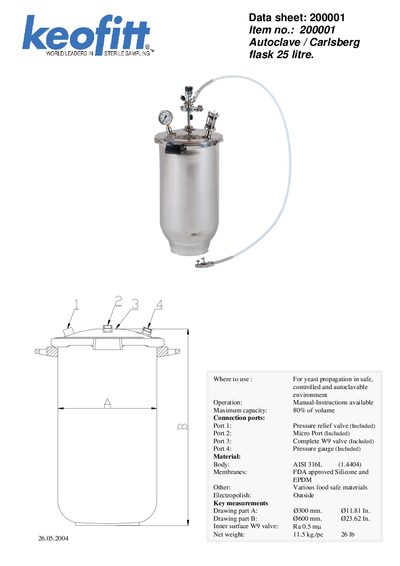

Provides specifications for the Carlsberg 25‑liter autoclave flask, including capacity, ports, materials, dimensions and weight.
The Carlsberg 25 litre autoclave flask is designed for yeast propagation in a safe, controlled and autoclavable environment. It operates manually and includes detailed technical data such as maximum capacity, connection ports, construction materials, key dimensions and net weight.
| Maximum capacity | 80% of volume |
|---|---|
| Port 1 | Pressure relief valve (Included) |
| Port 2 | Micro Port (Included) |
| Port 3 | Complete W9 valve (Included) |
| Port 4 | Pressure gauge (Included) |
| Body material | AISI 316L (1.4404) |
| Membranes | FDA approved Silicone and EPDM |
| Electro polish | Outside |
| Drawing part A diameter | Ø300 mm |
| Drawing part B diameter | Ø600 mm |
| Net weight | 11.5 kg / pc (26 lb) |
The flask can be filled up to 80 % of its total volume.
It has four ports: a pressure relief valve, a micro port, a complete W9 valve, and a pressure gauge, all included.
The body is constructed from AISI 316L stainless steel (1.4404).
