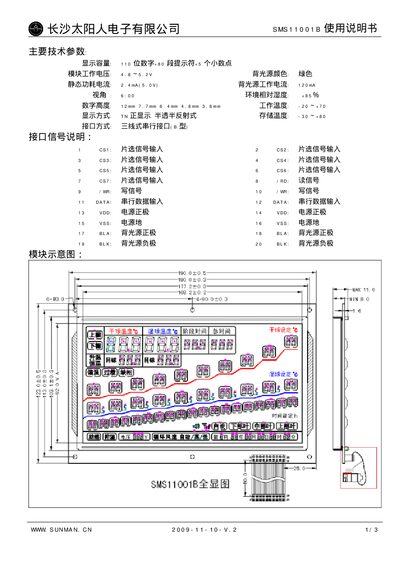

The Sunman SMS11001B LCD display module datasheet provides technical specifications, interface details, and address mapping information.
The SMS11001B is an LCD display module with an 11‑digit capacity, green backlight, and a working voltage of roughly 4.5‑5.2 V. It consumes 2.4 mA static power at 5 V and the backlight draws about 120 mA. The module operates from 20 °C to +70 °C.
The module uses a three‑wire serial interface (type‑e) and defines a detailed address mapping table for all control signals and data lines. Pin assignments such as CS1‑CS8, /Rhp, /wh, and power pins (VPP, VSS, BLA, BLK) are listed in the mapping sections. This manual is written in Chinese.
| Display capacity | 11 digits |
|---|---|
| Backlight color | Green |
| Static power consumption | 2.4 mA (5 V) |
| Backlight operating current | 120 mA |
| Working temperature range | 20 °C to +70 °C |
| Interface type | Three‑wire serial (type‑e) |
The module can display 11 digits.
The backlight is green.
It operates from 20 °C up to +70 °C.
It uses a three‑wire serial interface (type‑e).
