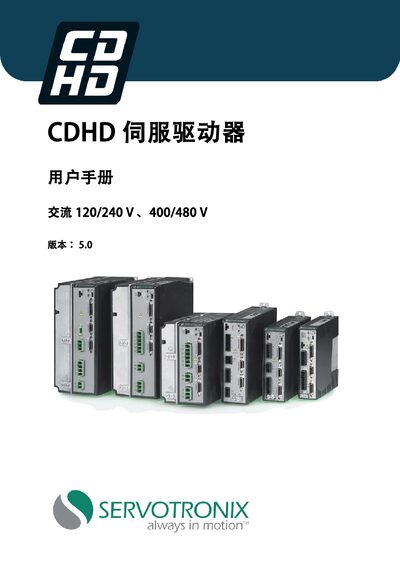

The Servotronix CDHD Servo Drive User Manual provides product overview, installation, configuration, and operation instructions.
This manual describes the CDHD servo drive family, covering safety guidelines, mechanical and electrical specifications, wiring diagrams, and the required hardware for installation. It also explains how to set up the ServoStudio debugging software, configure drive parameters, and perform motion control tasks.
Additional sections cover diagnostic tools, fault handling, firmware upgrade procedures, and vibration‑suppression tuning. The document includes detailed tables of electrical ratings, grounding requirements, and recommended protective devices to ensure reliable and safe operation. This manual is written in Chinese.
| Rated Voltage (line‑to‑line) | 120/240 VAC ±10% |
|---|---|
| Continuous Current (single phase) | 2.5 A rms (120 V) / 5 A rms (240 V) |
| PWM Frequency | 16 kHz |
| Hardware Net Weight | 0.7 kg (120 V) / 0.75 kg (240 V) |
| Rated Power | Depends on system |
The warranty lasts 30 months from the date of shipment.
The ServoStudio debugging software is used for configuration and testing.
All system components must be grounded with a low‑impedance ground as required by EN/IEC 618005‑1.
