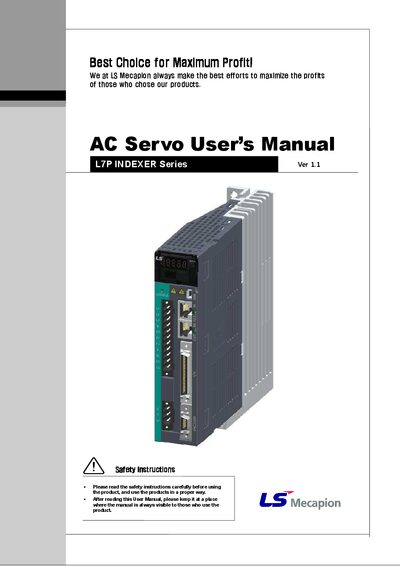

The LS Mecapion L7P INDEXER Series AC Servo User Manual provides safety instructions, wiring, control methods, and configuration details.
This manual begins with safety instructions and an overview of the L7P INDEXER Series AC Servo, guiding users on proper handling and installation. It details product composition, wiring and connection, and the various control methods such as indexing position, pulse input, velocity, and torque control.
Later sections cover maintenance, troubleshooting, communication protocol specifications, and firmware update procedures, with appendices that include wiring diagrams and connector specifications.
| Power Capacity Options | 100W, 200W, 400W, 800W, 1.0kW, 2kW, 3.5kW |
|---|---|
| Input Voltage | 200Vac / 400Vac |
| Rated Speed (RPM) | 3000, 2000, 1500, 1000 |
| Encoder Type | Quadrature, 1024 ppr / 2000 ppr |
The manual describes a firmware update using either a USB OTG connection or the Drive CM software.
When the terminating resistance switch is on, the drive uses an internal terminating resistance of 120 Ω.
The Node Address Switch allows you to set the drive’s node address from 0 to 31.
The manual advises to read the safety instructions carefully before using the product.
