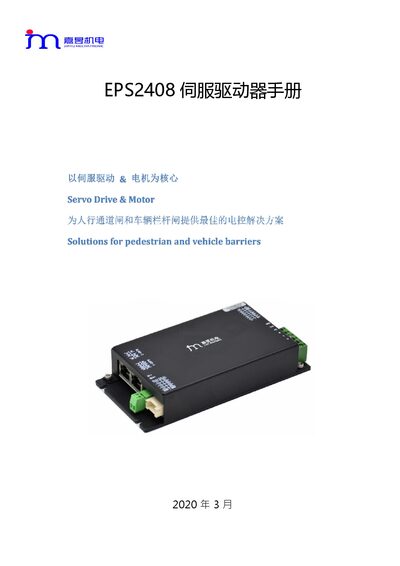

User manual for the JiaYu EPS2408 servo drive covering installation, wiring, software functions, parameters and communication protocol.
The EPS2408 is an economical low‑voltage servo drive designed for gate turnstile applications. It provides fast opening/closing, built‑in safety features and multiple communication interfaces.
The manual includes product overview, mechanical dimensions, wiring diagrams, software logic, parameter tables, diagnostic procedures and detailed Modbus/RS‑485/CAN communication protocol for gate control. This manual is written in Chinese.
| Input Voltage | 24VDC/48VDC |
|---|---|
| Continuous Current | 8 A |
| Peak Current | 24 A |
| Overload Capacity | 200 % (16 A) for 10 s |
| Discharge Resistor Power | 12 W |
| Digital I/O | 4 PNP inputs, 3 PNP outputs |
| Clutch Output | 1 NPN open‑collector, 1.5 A per channel |
| Protection Rating | IP20 |
| Operating Temperature | -20 °C ~ 55 °C |
The drive provides RS232, RS485 and CAN interfaces via an RJ45 connector.
Set dip switch S2 to configure the device as master or slave.
It can handle 200 % of rated load (16 A) for up to 10 seconds.
