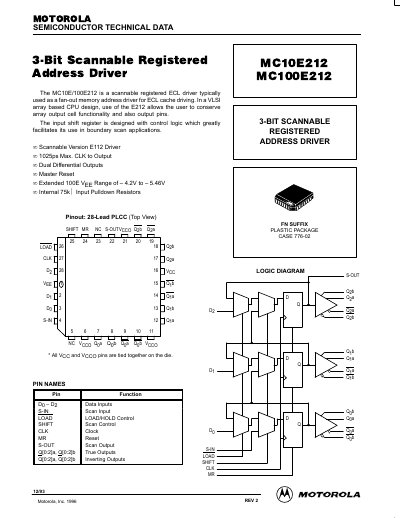

MOTOROLA 3-Bit scannable registered address driver MC10E212 MC100E212 datasheet(1)

Update: 30 September, 2023

The MC10E/100E212 is a scannable registered ECL driver typically used as a fan-out memory address driver for ECL cache driving. In a VLSI array based CPU design, use of the E212 allows the user to conserve array output cell functionality and also output pins. The input shift register is designed with control logic which greatly facilitates its use in boundary scan applications.

Brand: MOTOROLA

File format: PDF

Size: 70 KB

MD5 Checksum: 35D7AD5F62E3E03B49E609A33ABC89CE

Publication date: 10 July, 2012
