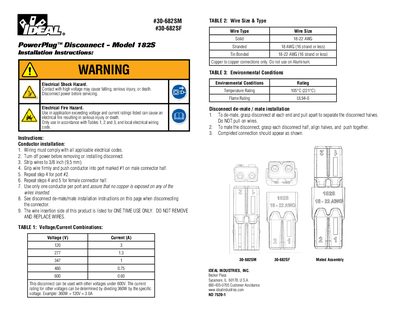

IDEAL INDUSTRIES INC PowerPlug Luminaire Disconnect Model 182S Instructions Manual

Update: 30 September, 2023

30-682SM and 30-682SF are Ideal Industries' PowerPlug™ disconnect connectors for the 182S model. They are rated for 120V to 600V and 3A to 0.6A. The connector's wire insertion side is only rated for one-time use and must be removed from the terminal before re-connecting. The terminals can accept 18-22 AWG solid, 18 AWG (16 strands or less) stranded, and 18-22 AWG tin bonded copper wire. The connector's operating temperature range is -25°C to 105°C.

Brand: IDEAL

File format: PDF

Size: 130 KB

MD5 Checksum: BF0AC5C3B8BC48E132A05A664D4A7A17

Publication date: 04 July, 2012

Downloads: -

PDF Link: IDEAL INDUSTRIES INC PowerPlug Luminaire Disconnect Model 182S Instructions Manual PDF

Download
