CML Semiconductor Products Bell 202 Compatible Modem FX614

Update: 01 October, 2023

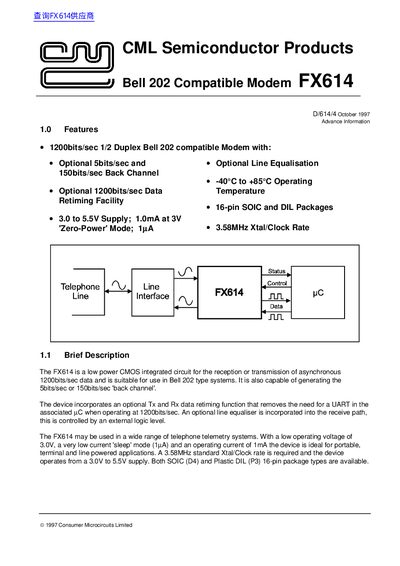

The FX614 is a low power CMOS integrated circuit from CML Semiconductor Products for receiving or transmitting asynchronous 1200bits/sec data and is suitable for use in Bell 202 type systems. It is also capable of generating the 5bits/sec or 150bits/sec 'back channel'. The device incorporates an optional Tx and Rx data retiming function that removes the need for a UART in the associated µC when operating at 1200bits/sec. An optional line equaliser is incorporated into the receive path, this is controlled by an external logic level. The FX614 may be used in a wide range of telephone telemetry systems. With a low operating voltage of 3.0V, a very low current 'sleep' mode (1µA) and an operating current of 1mA the device is ideal for portable, terminal and line powered applications. A 3.58MHz standard Xtal/Clock rate is required and the device operates from a 3.0V to 5.5V supply. Both SOIC (D4) and Plastic DIL (P3) 16 pin package types are available.

Brand: CML

File format: PDF

Size: 334 KB

MD5 Checksum: AC31C643E3ADA2422215E32A618195F9

Publication date: 12 June, 2012

Downloads: -

PDF Link: CML Semiconductor Products Bell 202 Compatible Modem FX614 PDF
