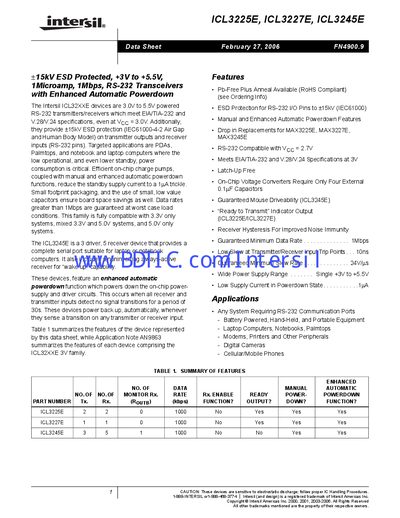

intersil ICL3225E ICL3227E ICL3245E Manual
Update: 30 September, 2023
ICL32XXE are 3.0V to 5.5V powered RS-232 transmitters/receivers that meet ElA/TIA-232 and V.28/V.24 specifications, even at VCC = 3.0V. Additionally, they provide ±15kV ESD protection (IEC61000-4-2 Air Gap and Human Body Model) on transmitter outputs and receiver inputs (RS-232 pins). Targeted applications are PDAs, Palmtops, and notebook and laptop computers where the low operational, and even lower standby, power consumption is critical. Efficient on-chip charge pumps, coupled with manual and enhanced automatic powerdown functions, reduce the standby supply current to a 1µA trickle. Small footprint packaging, and the use of small, low value capacitors ensure board space savings as well. Data rates greater than 1Mbps are guaranteed at worst case load conditions. This family is fully compatible with 3.3V only systems, mixed 3.3V and 5.0V systems, and 5.0V only systems. The ICL3245E is a 3 driver, 5 receiver device that provides a complete serial port suitable for laptop or notebook computers. It also includes a noninverting always-active receiver for “wake-up” capability. These devices, feature an enhanced automatic powerdown function which powers down the on-chip power- supply and driver circuits. This occurs when all receiver and transmitter inputs detect no signal transitions for a period of 30s. These devices have very low standby power consumption, making them ideal for portable applications.
Brand: intersil
File format: PDF
Size: 411 KB
MD5 Checksum: B9E1551391D9104BAFCCDC21A45F8FC6
Publication date: 27 March, 2012
Downloads: -
PDF Link: intersil ICL3225E ICL3227E ICL3245E Manual PDF
