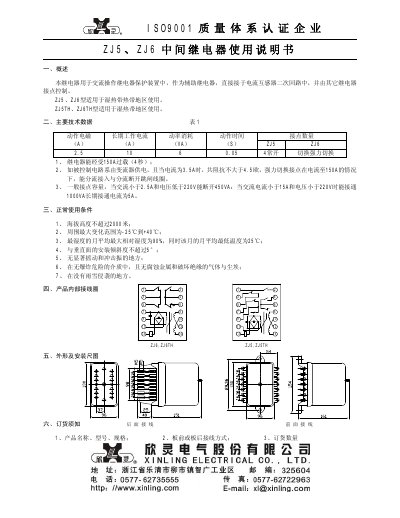

ZJ5/ZJ6 Intermediate Relay Instruction Manual
The ZJ5 and ZJ6 intermediate relays are used as auxiliary relays in AC protection devices, connected directly to the secondary circuit of current transformers and controlled by other relay contacts. The ZJ5/ZJ6 models are suitable for humid tropical regions, while the ZJ5TH/ZJ6TH variants are for humid subtropical areas.
The manual lists main technical data, normal operating conditions (altitude ≤2000 m, temperature -25 °C to +40 °C, humidity up to 90 %), internal wiring coil details, dimensions, installation guidelines, and ordering information. This manual is written in Chinese.
Covers: Overview · Main Technical Data · Normal Use Conditions · Internal Wiring Coil · Appearance and Installation Dimensions · Ordering Information
Latest ZJ manuals
ZJ5/ZJ6 Intermediate Relay Instruction Manual
User Manual 1 pages · 85 KB · ZHThis manual provides overview, technical data, installation conditions, wiring and ordering information for ZJ5 and ZJ6 intermediate relays.
Which document do I need?
User Manual
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in ZJ manuals
What is the maximum altitude for using the ZJ5/ZJ6 relays?
The relays can be used at altitudes up to 2000 meters.
What temperature range can the relays operate in?
They operate between –25 °C and +40 °C.
