Wanjia WJ180 Large Power Relay User Manual
The WJ180 is a high‑reliability, low‑power‑consumption large power relay designed to meet IEC255 and GB8898 standards. It is suitable for industrial machine tools, power‑and‑gas equipment, and regulated power supplies, offering strong impact resistance and a contact load of up to 60 A at 250 VAC.
The manual lists the relay’s electrical specifications, coil parameters, dimensions, and wiring diagram. Key data include a maximum contact resistance of 50 mΩ, a rated coil power of 2.5 W, and an operating temperature range of –40 °C to +55 °C. This manual is written in Chinese.
Covers: Specifications · Coil Parameters · Dimensions · Wiring Diagram · Order Mark · Applications
Latest WANJIA manuals
Wanjia WJ180 Large Power Relay User Manual

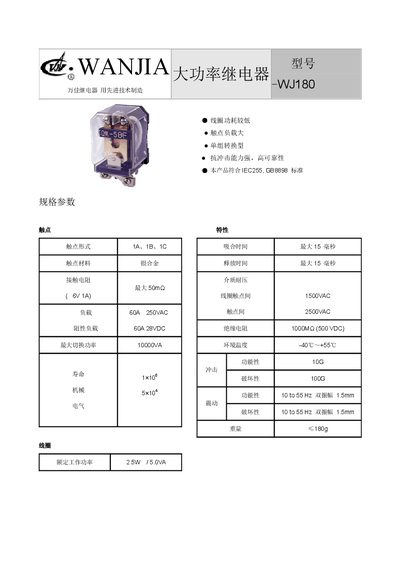

User Manual 3 pages · 241 KB · ZHThe Wanjia WJ180 large power relay manual provides specifications, wiring details, and operating parameters.
Which document do I need?
User Manual
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in WANJIA manuals
What is the maximum contact resistance?
The maximum contact resistance is 50 mΩ.
What is the rated coil power consumption?
The coil’s rated power consumption is 2.5 W.
