Featured v-solenoid manuals

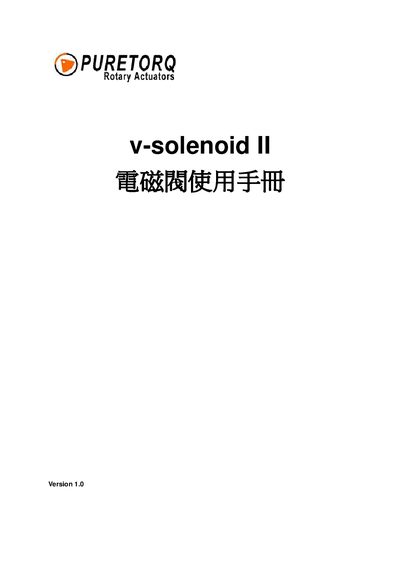

v-solenoid II Electromagnetic Valve Service Manual
This manual covers the installation, wiring, and power‑connection requirements for the v‑solenoid II electromagnetic valve. It includes safety warnings, recommended temperature and pressure limits, and guidelines for proper pipe and cable connections.
The document also details maintenance procedures, troubleshooting steps, and warranty information, emphasizing that only trained personnel should perform repairs and that the valve can be operated manually during power loss. This manual is written in Japanese.
Covers: Maintenance Notes · Product Applications · Operation Explanation · Function Selection · Installation Guidelines · Power Connection
Latest v-solenoid manuals
v-solenoid II Electromagnetic Valve Service Manual
Service Manual 6 pages · 556 KB · JAThe v-solenoid II electromagnetic valve service manual provides installation, operation, and maintenance instructions.
Which document do I need?
Service Manual
Disassembly, diagnostics and part numbers, for repair.
Questions answered in v-solenoid manuals
What are the minimum and maximum operating pressures for the v-solenoid II valve?
The valve operates between 35 PSI (2.5 BAR) minimum and 120 PSI (8 BAR) maximum pressure.
What temperature range is recommended for using the valve?
The valve is rated for ambient temperatures from –40 °C to +120 °C.
