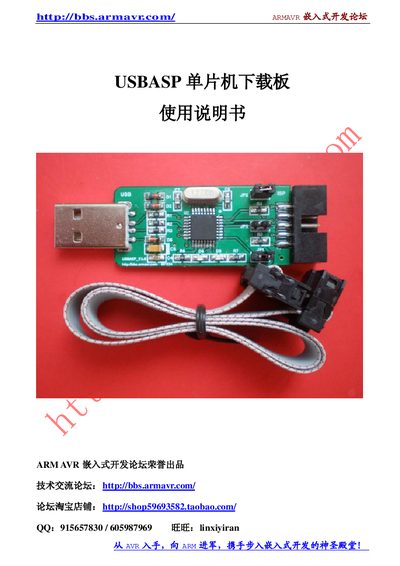

USBASP Download Board User Manual
The USBASP download board is a USB‑based programmer designed for AVR and 8051 microcontrollers. It uses an Alnega8 chip and speed‑adaptive technology, providing a compact 10‑pin ISP connector and optional 5 V/500 mA power to the target board.
The manual covers driver installation on Windows, jumper settings for programming speed and power supply, and lists supported microcontroller families. It also includes the hardware schematic, a parts list, and references to compatible programming software such as ProgISP and AVR_fighter. This manual is written in Chinese.
Covers: Introduction · Driver Installation · Operation · Hardware Diagram · Supported Chips · Package Contents
Latest USBASP manuals
USBASP Download Board User Manual
User Manual 9 pages · 691 KB · ZHThe USBASP download board manual explains hardware features, driver installation, and programming procedures for AVR microcontrollers.
Which document do I need?
User Manual
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in USBASP manuals
How do I supply power to the target board from the USBASP?
Set jumper J2 (or JP2) to the closed position to enable 5 V/500 mA output; open the jumper to disable power if the target board draws too much current.
