Featured TOYOGIKEN manuals
TOYOGIKEN EC7-1A-P EC7-1AX-P
The EC7‑1A‑P and EC7‑1AX‑P are feed‑through terminal blocks designed for reliable connection in industrial equipment. They provide a compact solution with a rated voltage of 250 V and a current rating of 10 A, suitable for a wide range of applications.
The terminals feature a PBT (UL94V‑0) black housing, brass tin‑plated contacts, and M3 (or M4 for the 1AX variant) screws. They support wire sizes up to 1.25 mm², operate from 40 °C to +85 °C, and require a tightening torque of 0.8 N·m. Insulation voltage is rated at AC 2000 V for 1 min, with a dielectric strength of DC 500 V and 100 MΩ insulation resistance. This manual is written in Japanese.
Covers: Electrical Ratings · Mechanical Dimensions · Materials · Installation Torque · Wire Size · Temperature Range
Latest TOYOGIKEN manuals

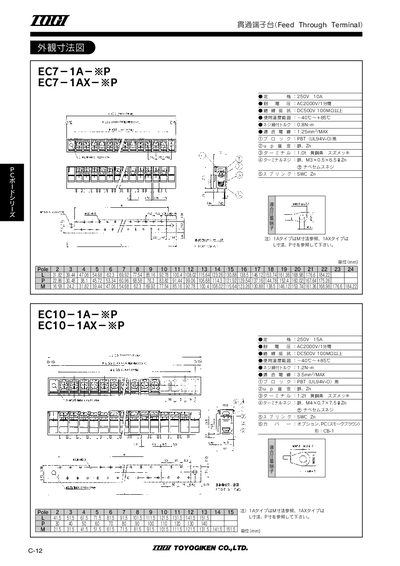

TOYOGIKEN EC7-1A-P EC7-1AX-P
Product Leaflet 1 pages · 141 KB · JAData sheet for Toyogiken EC7-1A-P and EC7-1AX-P feed‑through terminals with electrical and mechanical specifications.
Questions answered in TOYOGIKEN manuals
What is the rated voltage of the EC7‑1A‑P terminal?
The terminal is rated for 250 V.
What is the maximum wire cross‑section the terminal can accept?
The terminal accepts wire sizes up to 1.25 mm².
