TOPPIC Development Board User Manual
The TOPPIC development board is a versatile microcontroller platform that integrates common interfaces such as USB, SD‑card, 8×8 LED matrix, 1602 LCD, DS1302 RTC and DS18B20 temperature sensor. It is designed for students and hobbyists to experiment with PIC, AVR and 8051 based microcontrollers and to quickly prototype embedded applications.
The manual describes the board dimensions, power supply options, pin‑out diagrams, and step‑by‑step programming using MPLAB IDE with an ICD2 programmer. It also explains how to connect external peripherals via the provided connectors and how to use short‑circuit jumpers for flexible hardware configuration. This manual is written in Japanese.
Covers: Board Overview · Hardware Interfaces · Power Supply Options · Pin Connections and Jumpers · Programming with MPLAB IDE · USB Data Interface
Latest toppic manuals
TOPPIC Development Board User Manual

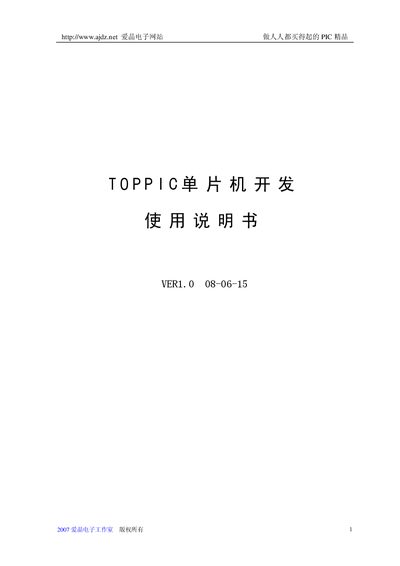

User Manual 17 pages · 1.9 MB · JAThis user manual provides an overview, hardware connections, and programming instructions for the TOPPIC microcontroller development board.
