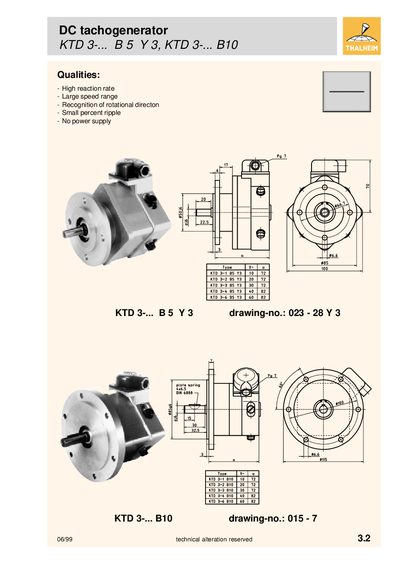

THALHEIM-KTD 3 DC tachogenerator KTD 3-... B 5 Y 3 KTD 3-... B10 - technology data(German)

The KTD 3 series DC tachogenerator provides high reaction rate, a large speed range, and direction recognition without requiring an external power supply. It is offered in B5 Y3 and B10 versions with different shaft diameters and mass moments of inertia.

Mechanical data include an IP54 protective class, alloy metal housing, and shaft diameters of 9 mm (B5 Y3) and 11 mm (B10). Electrical characteristics are referenced to 1000 rpm, with rated voltages and currents varying by model. Options such as terminal boxes, centrifugal switches, and enhanced protective classes are available, and carbon brushes are rated for roughly 20 000 hours of operation.

Covers: Qualities · Mechanical Data · Electrical Data · Options · Temperature Drift
