STYILONG YL-48ZKG Temperature Controller User Manual
The YL-48ZKG temperature controller is a self‑developed product that uses microcontroller software control and an SSR‑DV solid‑state relay (or SCR) to achieve continuous, stepless voltage regulation from 0 V to 220 V. It features negative‑feedback compensation for stable voltage, power‑off retention of the set voltage, and a soft‑start function that protects heating elements.
The manual describes panel key functions, how to set and save soft‑start timing, wiring diagrams for single‑ and three‑phase connections, and important safety precautions such as matching the load phase line with the instrument power phase line and using appropriate SSR‑DV current ratings. This manual is written in Chinese.
Covers: Overview · Panel Key Functions · Soft‑Start Function · Wiring Requirements · Safety Precautions · Wiring Diagrams
Latest STYILONG manuals

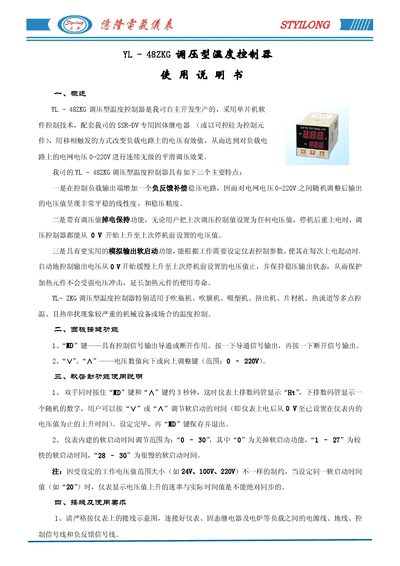

STYILONG YL-48ZKG Temperature Controller User Manual
User Manual 2 pages · 265 KB · ZHThe STYILONG YL-48ZKG temperature controller manual provides operation, wiring, soft‑start and safety instructions for industrial heating applications.
Which document do I need?
User Manual
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in STYILONG manuals
What does the MD key do?
The MD key toggles the control signal output on and off.
What wiring precaution must be observed for the load phase line?
The load phase line must be connected to the same power phase line as the instrument; otherwise the instrument may be damaged.
