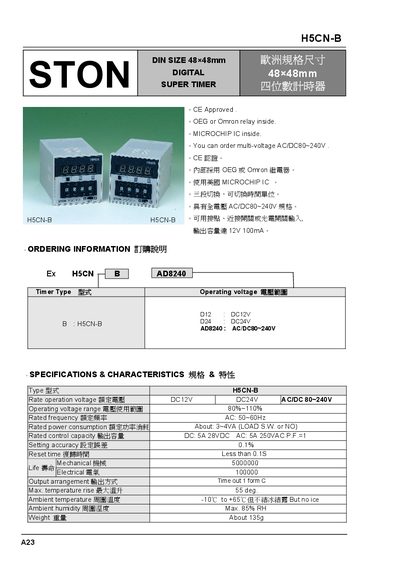

STON H5CN-B Timer Manual
This manual describes the STON H5CN-B timer, a DIN‑size (48 × 48 mm) device that can be powered from 12 V DC, 24 V DC, or 80‑240 V AC/DC. It includes the timer’s electrical characteristics, mechanical life, environmental limits, and wiring diagrams for external contacts.
The document also explains the operation modes (Mode A – Trigger, Mode B – Hold), the function of the N.O., N.C., and instantaneous contacts, and provides notes on reset time and power consumption. Dimensions, weight, and ordering information are listed for reference.
Covers: Specifications & Characteristics · Dimensions · Operation Modes · External Contact Input · Rated Operating Voltage · Notes
