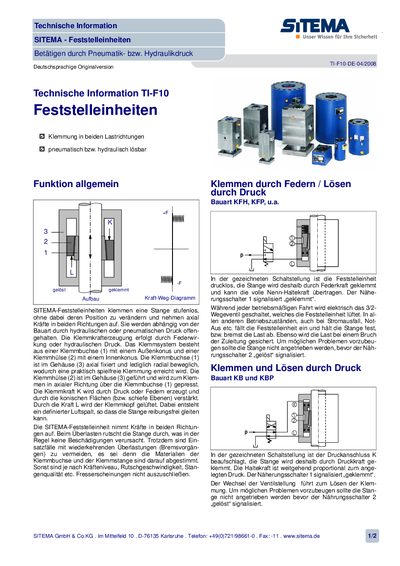

SITEMA TI-F10 Technical Information
The TI-F10 series are SITEMA clamping units that grip a rod continuously without changing its position and absorb axial forces in both directions. They are actuated by pneumatic or hydraulic pressure, or by spring force, depending on the construction. The clamping force is generated by pressure or springs and is transmitted through conical surfaces, while a defined air gap allows friction‑free rod movement.
The document lists the available construction types (KFH, KFP, KB, etc.), their actuation methods, and the rod diameters they support (10 mm to 250 mm). It also references related data sheets and operating manuals for detailed installation and testing procedures. This manual is written in German.
Covers: Technische Information · Feststelleinheiten · Übersicht Bauarten · Klemmen durch Federn / Lösen durch Druck · Weitere Informationen
Latest SITEMA-TI-F10 manuals
SITEMA TI-F10 Technical Information
Datasheet 2 pages · 243 KB · DETechnical data sheet for SITEMA TI-F10 clamping units, describing operation, variants, and specifications.
