Featured Shock manuals

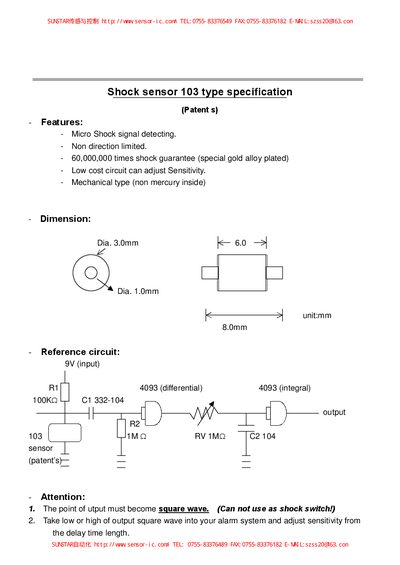

SUNSTAR Shock Sensor 103 Type Specification
The Shock Sensor 103 is a micro‑shock signal detector with non‑direction‑limited sensing, a 60,000,000‑shock guarantee and a low‑cost circuit that allows sensitivity adjustment. It is a mechanical type sensor without mercury inside.
The document provides key dimensions (diameter 3.0 mm, 1.0 mm, length 8.0 mm) and a reference circuit using a 9 V input, R1 4093, C1 332‑104, R2 103, and other components. It also notes that the output must be a square wave for alarm system integration. This manual is written in Chinese.
Covers: Features · Dimensions · Reference Circuit · Attention · Company Information
Latest Shock manuals
SUNSTAR Shock Sensor 103 Type Specification
Datasheet 3 pages · 306 KB · ZHThe SUNSTAR Shock Sensor 103 specification outlines its micro‑shock detection features, dimensions and reference circuit.
Which document do I need?
Datasheet
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in Shock manuals
How many shock events is the sensor guaranteed for?
It is guaranteed for 60,000,000 shock events.
What input voltage does the reference circuit use?
The reference circuit is designed for a 9 V input.
