Featured SGMuCH2 manuals

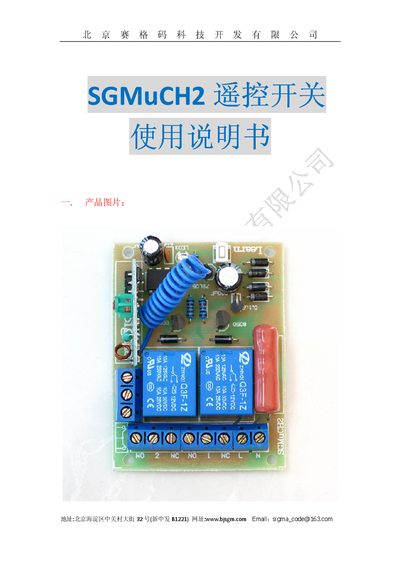

Segma SGMuCH2 Remote Control Switch User Manual
The SGMuCH2 is a two‑channel remote control switch that can handle both AC 220 V and DC 12 V loads. It offers three selectable operating states – interlock, non‑lock and self‑lock – and can control devices such as electric doors, windows and industrial equipment.
The manual explains the hardware specifications, wiring connections, button operations for short‑press and long‑press modes, and the learning process for address and button codes. Contact information for the manufacturer is provided at the end of the document. This manual is written in Chinese.
Covers: Product Overview · Basic Parameters · Operation Instructions · Wiring and Connection · Contact Information
Latest SGMuCH2 manuals
Segma SGMuCH2 Remote Control Switch User Manual
User Manual 6 pages · 895 KB · ZHUser manual for the Segma SGMuCH2 remote control switch, describing features, wiring, operation modes and learning procedure.
Which document do I need?
User Manual
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in SGMuCH2 manuals
What wiring terminals are used for 220 V and 12 V connections?
For 220 V, L and N are the line and neutral terminals; for 12 V, L is the positive input and N is the negative input.
