Featured SCHAAF manuals

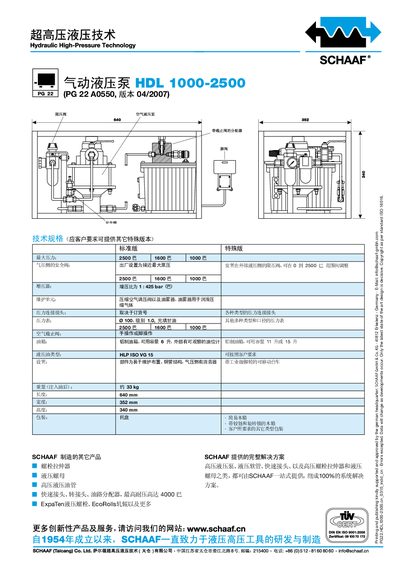

SCHAAF HDL 1000-2500 Hydraulic Pump Service Manual
The SCHAAF HDL 1000-2500 hydraulic pump is designed for ultra‑high‑pressure applications. It features a selectable maximum pressure of up to 2500 bar, with preset safety limits at 1600 bar and 1000 bar, and an external pressure limiter that can be adjusted between 0 and 2500 bar. The pump includes an air‑driven pressure regulator, oil mist lubricator, and a range of pressure connectors and gauges.
The unit is built on an aluminum oil tank available in 6 L, 11 L or 15 L capacities, a steel‑tube structure with a silencer on the pneumatic side, and is mounted on a mobile base with industrial‑grade casters. Physical dimensions are 640 mm (L) × 352 mm (W) × 340 mm (H) and the weight is approximately 33 kg when filled with oil. Hydraulic oil type is HLP ISO VG 15, and the standard pressure gauge is an O‑100, class 1.0. This manual is written in Chinese.
Covers: Safety Limits · Pressure Settings · Components and Connectors · Dimensions and Weight · Oil Tank Capacity · Hydraulic Oil Type

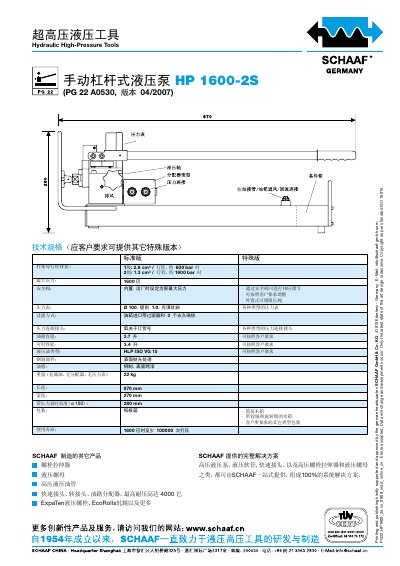

SCHAAF HP 1600-2S Hand Lever Hydraulic Pump Manual
The HP 1600-2S is a manual lever‑operated hydraulic pump offering two displacement levels (2.8 cm³ at ~600 bar and 1.3 cm³ at ~1600 bar) with a maximum pressure of 1600 bar. It features a steel tank with a 3.7 L capacity (3.4 L usable), weighs 22 kg when filled, and measures 870 mm × 270 mm × 280 mm (with a Ø100 pressure gauge).\n\nThe pump includes an internal safety valve preset to the maximum pressure, optional external pressure‑adjustable valves, and a variety of pressure‑gauge and connector options. Packaging is available in several formats, and accessories such as distribution blocks and spare‑part kits can be ordered separately. The design is rated for at least 100 000 cycles at 1600 bar. This manual is written in Chinese.
Covers: Technical Specifications · Safety Features · Dimensions and Weight · Pressure Gauge Options · Ordering Information · Optional Accessories
Latest SCHAAF manuals
SCHAAF HDL 1000-2500 Hydraulic Pump Service Manual
Service Manual 2 pages · 337 KB · ZHService manual with specifications, safety limits and maintenance instructions for the SCHAAF HDL 1000-2500 hydraulic pump.
SCHAAF HP 1600-2S Hand Lever Hydraulic Pump Manual
Service Manual 2 pages · 296 KB · ZHThe SCHAAF HP 1600-2S hand lever hydraulic pump manual provides specifications, safety features, and ordering information.
