Featured PZ manuals

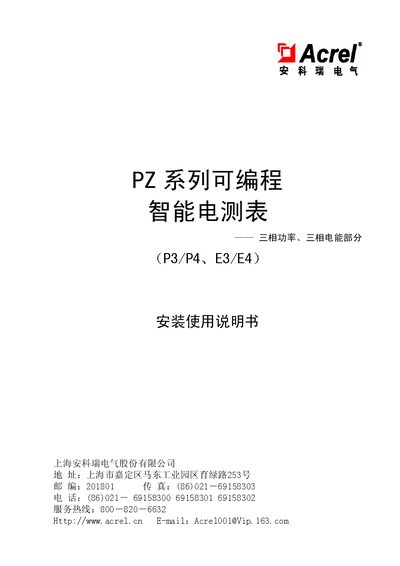

Acrel PZ Series Installation Manual
The PZ series three‑phase power and energy meters are designed for AC measurement and can be connected to SCADA or energy‑management systems via an RS‑485 Modbus‑RTU interface. The meters support up to four measurement channels and provide functions such as active/reactive power, power factor, frequency, and voltage/current monitoring.
This manual covers product specifications, mechanical dimensions, wiring diagrams, terminal assignments, and step‑by‑step installation procedures, including mounting, terminal connections, and communication configuration. This manual is written in Chinese.
Covers: Overview · Product Specifications · Technical Parameters · Installation Guide · Wiring and Terminal Connections · Communication and Modbus Settings
Latest PZ manuals
Acrel PZ Series Installation Manual
Installation Guide 20 pages · 967 KB · ZHInstallation guide for the Acrel PZ series three‑phase power and energy meters with RS‑485 Modbus‑RTU communication.
Which document do I need?
Installation Guide
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in PZ manuals
What communication protocol does the PZ series meter use?
The meter uses an RS‑485 interface that is compatible with the Modbus‑RTU protocol.
How many measurement channels can be configured?
The device can be configured for two or four measurement channels depending on the model and options.
