Featured PULS manuals

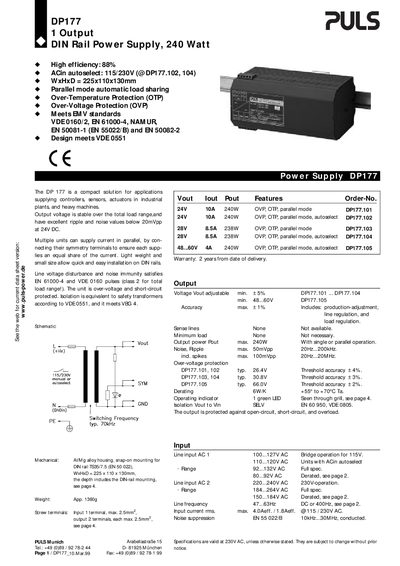

PULS DP177 DIN Rail Power Supply 240 W User Manual
The DP177 DIN‑rail power supply delivers up to 240 W with an efficiency of 88 % and features automatic AC input selection (115/230 V). It provides stable output voltage, low ripple (≤50 mVpp) and includes overload, over‑temperature and short‑circuit protection. The unit can be paralleled with up to ten identical supplies for load sharing.
The housing is an Al/Mg alloy with snap‑on DIN‑rail mounting (225 × 110 × 130 mm, weight ≈1.36 kg). Installation requires proper airflow and compliance with VDE, EN and IEC safety standards. Electrical connections use screw terminals (max 2.5 mm²) for input, output and SYM lines, and a fuse protects against external short circuits.
Covers: Features · Technical Specifications · Installation · Electrical Connections · Parallel Operation · Protection and Safety

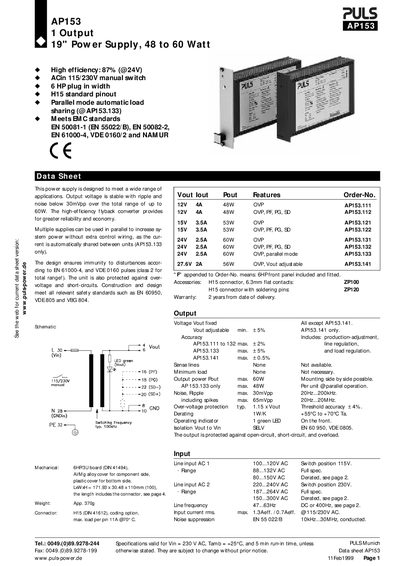

PULS AP153 1-Output 19" Power Supply 48‑60 Watt Datasheet
The AP153 is a compact 19‑inch, 6HP/3U power supply designed for industrial rack applications. It offers high efficiency (87% @24 V) and a manual 115 V/230 V AC input switch.
Key features include H15 DIN 41612 connector (max 11 A per pin), automatic load‑sharing for parallel units (AP153.133), extensive EMC compliance, and built‑in protections such as overload, short‑circuit, over‑voltage and reverse‑battery protection. Mechanical dimensions are 171.93 × 30.48 × 110 mm and the unit weighs about 370 g.
Covers: Features · Electrical Characteristics · Mechanical Dimensions · Protection · EMC Compliance · Installation

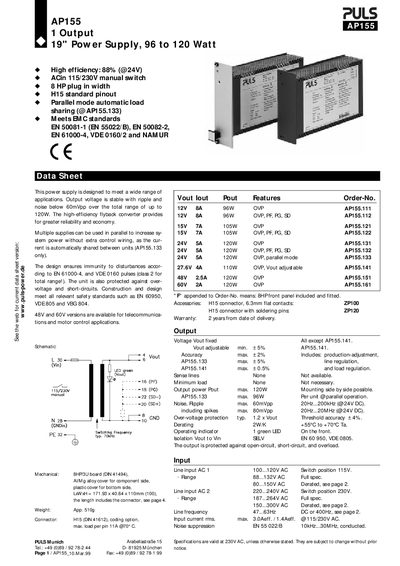

PULS AP155 1 Output 19" Power Supply 96 to 120 Watt Manual
This manual describes the PULS AP155 1‑Output 19" power supply, a high‑efficiency (88% @24 V) unit delivering 96 to 120 W. It covers electrical specifications, mechanical dimensions, connector details, and protection features such as over‑voltage, short‑circuit and overload safeguards.
Installation guidance includes DIN‑rail mounting, H15 connector pinout, airflow requirements, and parallel operation of multiple AP155.133 units. The document also lists EMC compliance, environmental limits, and warranty information.
Covers: Specifications · Mechanical Dimensions · Electrical Input & Output · Installation & Mounting · Protection Features · Parallel Operation
PULS DP153 DIN Rail Power Supply Data Sheet
The DP153 DIN‑rail power supply provides a stable 10 V output up to 4 A (48 W) in a compact 40 × 130 × 120 mm housing weighing about 460 g. It features high efficiency (up to 87 % at 24 V) and low output ripple (<20 mVpp). The unit can be installed on TS35/7.5 DIN rails and supports manual selection of 115 V or 230 V AC input.
The supply meets multiple EMC and safety standards (EN 50081‑1, EN 55022, VDE 0551, etc.) and includes protection against overload, short‑circuit, over‑voltage, reverse battery and over‑temperature. Parallel‑mode operation (DP153.133) allows unlimited units to share load, improving current capability.
Covers: Specifications · Output · Input · Parallel operation · EMC and safety · Installation
Latest PULS manuals
PULS DP177 DIN Rail Power Supply 240 W User Manual
User Manual 4 pages · 103 KB · ENThe DP177 is a compact 240 W DIN‑rail power supply with high efficiency, overload protection and parallel operation.
PULS AP153 1-Output 19" Power Supply 48‑60 Watt Datasheet
Datasheet 4 pages · 144 KB · ENThe PULS AP153 is a 19‑inch, 48‑60 W power supply with 87% efficiency, selectable 115/230 V input, H15 connector and optional parallel operation.
PULS AP155 1 Output 19" Power Supply 96 to 120 Watt Manual
User Manual 4 pages · 166 KB · ENThe PULS AP155 1‑Output 19" power supply manual provides specifications, installation, and safety information for the 96‑120 W unit.
PULS DP153 DIN Rail Power Supply Data Sheet
Datasheet 4 pages · 109 KB · ENThe PULS DP153 is a compact DIN‑rail power supply delivering 40‑60 W with high efficiency and optional parallel operation.
PULS DIN Rail Switch Power Supply Selection Guide
Product Leaflet 16 pages · 1.1 MB · ZHA reference guide for selecting PULS DIN‑rail switch‑mode power supplies across six series with specifications and performance data.
