Featured Proportional manuals

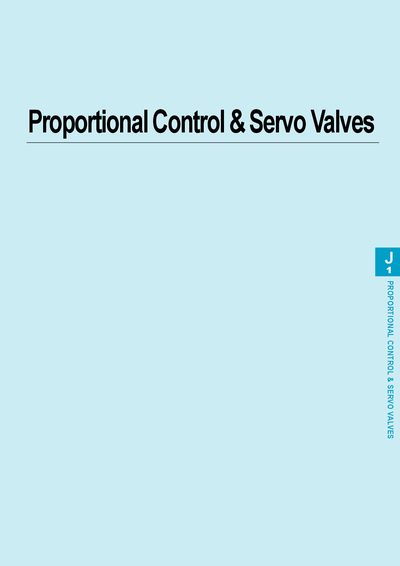

Tokimec Proportional Control & Servo Valves Product Leaflet
This leaflet presents Tokimec's range of proportional control and servo valves, including direct‑acting relief valves (EPCG2 series), flow control valves (EPFG, EPFRG series) and 3‑way servo valves (ST3 series). It describes the operating principles, controller options, and the benefits of proportional hydraulic control such as smooth acceleration, shock‑less operation and system simplification.
The document provides performance curves, mounting dimensions, wiring diagrams, and detailed specifications for each valve model, along with installation notes such as air‑bleed procedures, manual pressure adjustment, and required mounting hardware.
Covers: Valve Types · Specifications · Performance Curves · Mounting Dimensions · Controllers · Wiring and Terminals
Latest Proportional manuals
Tokimec Proportional Control & Servo Valves Product Leaflet
Product Leaflet 46 pages · 2.7 MB · ENTechnical overview, specifications and installation details for Tokimec proportional control and servo valves.
Questions answered in Proportional manuals
What is the pressure adjustment range of the EPCG2‑01 valve?
The EPCG2‑01 provides pressure adjustment ranges of 0.7–3.5 MPa, 1–7 MPa, 1–14 MPa, 1–17.6 MPa and up to 21 MPa depending on the selected code.
From: Tokimec Proportional Control & Servo Valves Product Leaflet
