Featured Phase manuals

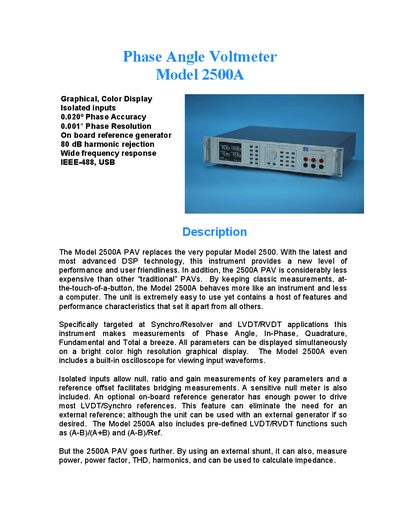

Nova Phase Angle Voltmeter 2500A User Manual
The Model 2500A Phase Angle Voltmeter from Nova offers high‑resolution color graphical display, isolated inputs, and built‑in oscilloscope functionality. It is designed for Synchro/Resolver and LVDT/RVDT applications, measuring phase angle, in‑phase, quadrature, fundamental, total, power, THD and harmonics.
The instrument features galvanically isolated dual channels, wide voltage input ranges (20 mV rms to 630 V rms), IEEE‑488.2 and USB interfaces, and a 30 VA power supply. Physical dimensions are approximately 17.3" W × 3.5" H × 13" D, weighing about 13 lb, and it operates from 0 °C to 40 °C.
Covers: Description · Typical Displays · Specifications · Voltage Accuracy · Phase Accuracy · General
Latest Phase manuals
Nova Phase Angle Voltmeter 2500A User Manual
User Manual 5 pages · 1.1 MB · ENThe Nova Phase Angle Voltmeter 2500A User Manual provides specifications, operation instructions, and interface details for accurate phase angle measurements.
Which document do I need?
User Manual
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in Phase manuals
What is the phase accuracy of the Model 2500A?
The Model 2500A provides a phase accuracy of 0.020°.
What voltage input ranges does the Model 2500A support?
It accepts voltage inputs from 20 mV rms up to 630 V rms.
