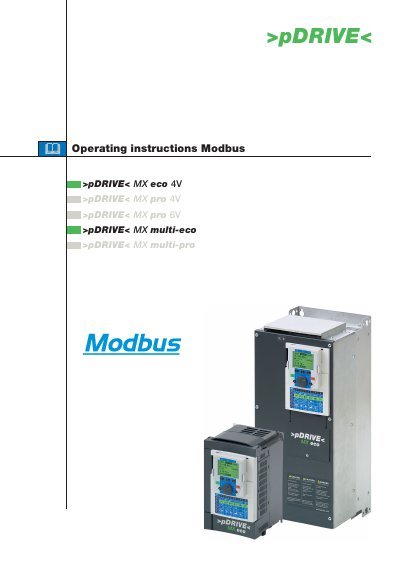

pDRIVE ecoMX 4V, proMX 4V, proMX 6V, multi-ecoMX, multi-proMX Frequency Inverter Modbus Operating Instructions
This manual provides safety guidelines, capacitor discharge procedures and commissioning requirements for the pDRIVE frequency inverter series. It stresses that only qualified personnel should perform work on the device and that capacitors must be fully discharged before any intervention.
The document details the Modbus RTU implementation, RJ45 connection, network topology, address configuration and diagnostic functions. It also lists parameterization options, process data areas and troubleshooting trip messages for the various inverter models.
Covers: Function Modbus · Hardware · Process data area · Control word · Main reference value · Status word
Latest pDRIVE< manuals
pDRIVE ecoMX 4V, proMX 4V, proMX 6V, multi-ecoMX, multi-proMX Frequency Inverter Modbus Operating Instructions
User Manual 88 pages · 1.4 MB · ENOperating instructions for pDRIVE frequency inverters (ecoMX 4V, proMX 4V, proMX 6V, multi-ecoMX, multi-proMX) covering Modbus interface, safety…
Which document do I need?
User Manual
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in pDRIVE< manuals
What must be done before working on the inverter?
Disconnect the device from the mains and wait at least 15 minutes until the capacitors are fully discharged.
How many subscribers can be connected to a single Modbus segment?
A maximum of 32 subscribers, including repeaters, can be connected to one segment.
