NewMsgTech RFC33A Wireless Module User Manual
The RFC33A is a wireless module based on the Nordic nRF905 chip with an added power‑amplifier circuit that raises the output to 33 dBm, extending the typical range to over 2000 m. It operates in the 433/868/915 MHz ISM bands, supports GFSK modulation, and can be programmed via an SPI interface.
This manual covers the product overview, key features, pin‑out and electrical parameters, SPI programming sequences, register configuration, and practical application notes. It also includes safety warnings, power‑supply recommendations, and contact information for technical support. This manual is written in Chinese.
Covers: 产品概述 · 基本特性 · 引脚接口说明 · 模块电气参数 · SPI读写操作时序 · 配置寄存器分析
Latest NewMsgTech manuals
NewMsgTech RFC30F Wireless module user manual
This document introduces the basic features and functions of the RFC30F wireless module from NewMsgTech. The module uses the nRF905 chip and operates on the 433, 868, and 915MHz channels. It can communicate with any MCU through the SPI interface. The module features low power consumption, long-distance communication, and reliable data transmission, making it suitable for industrial data acquisition, wireless alarm, and security systems.
NewMsgTech ADF7021 Wireless module user manual
ADF7021 is a low-power, high-integration 2FSK/3FSK/4FSK narrowband transceiver chip launched by ADI (Analog Devices) company. The chip has high receiver sensitivity and programmable output power, suitable for high-reliability applications such as wireless automatic meter reading, industrial control and automation, and remote security systems.
NewMsgTech RFC33A Wireless Module User Manual

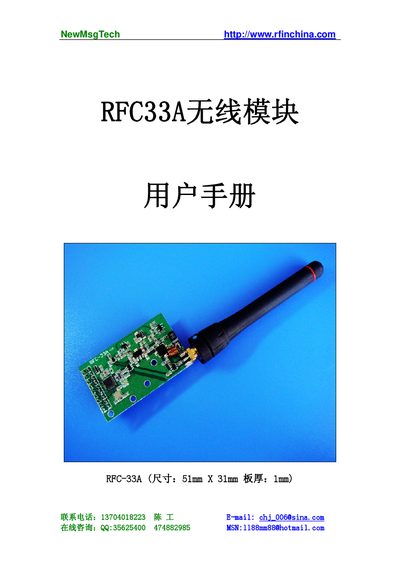

User Manual 28 pages · 1.4 MB · ZHThe NewMsgTech RFC33A Wireless Module User Manual provides specifications, pin definitions, and programming instructions for the 33 dBm RF module.
