Featured MICRO-CONTROLLER manuals

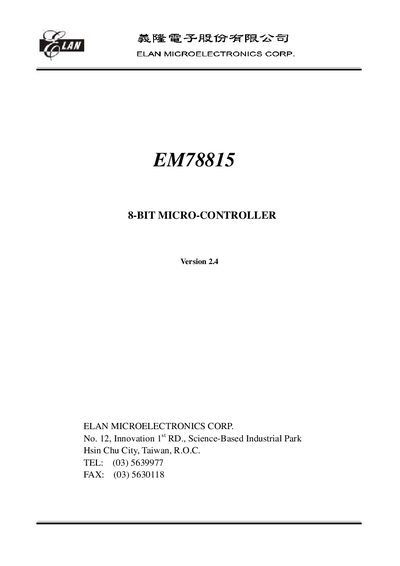

Elan EM78815 8-bit Microcontroller Datasheet
The EM78815 is an 8‑bit CID RISC microcontroller from Elan Microelectronics, featuring low‑power CMOS technology, an on‑chip watchdog, real‑time clock, LCD controller, and various tone and decoder functions for CID calling message display.
The document lists the device's electrical characteristics, memory sizes, I/O capabilities, clock options, and pin assignments, along with functional block diagrams and example application circuits for LCD drivers.
Covers: General Description · Feature · Specification Revision History · Pin Configuration · Functional Block Diagram · Pin Descriptions
Latest MICRO-CONTROLLER manuals
Elan EM78815 8-bit Microcontroller Datasheet
Datasheet 61 pages · 511 KB · ENThe Elan EM78815 datasheet provides specifications, pin configurations, and functional details for the 8‑bit microcontroller.
Which document do I need?
Datasheet
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in MICRO-CONTROLLER manuals
What is the operating voltage range of the EM78815?
The device operates from 2.2 V to 3.6 V in normal mode and from 2.0 V to 3.6 V in green mode.
How much program memory does the EM78815 provide?
It includes a 64K × 13 on‑chip program ROM that can support up to 128K words of program code.
