Featured MESSOTRON-MBI manuals

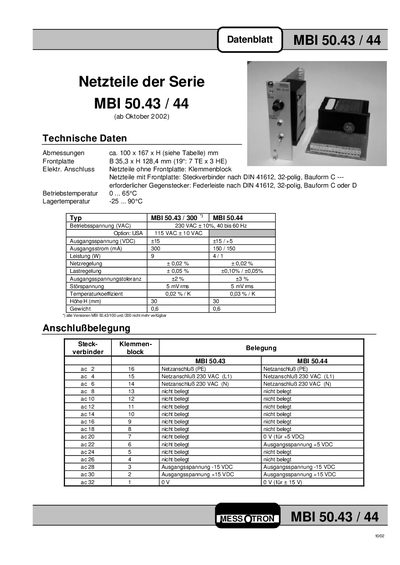

Messotron MBI 50.43/44 Datasheet
The MBI 50.43/44 series are DIN‑41612, 32‑pin power supplies offered with or without a front panel. Dimensions are approximately 100 × 167 mm with a front‑plate size of 35.3 × 128.4 mm.
Key electrical parameters include a 230 VAC input (40‑60 Hz) with optional 115 VAC, output voltages of ±15 VDC and +5 VDC, and a maximum power of 9 W. Operating temperature ranges from 0 °C to 65 °C, and storage temperature from –25 °C to 90 °C. This manual is written in German.
Covers: Abmessungen · Frontplatte · Elektr. Anschluss · Betriebstemperatur · Betriebsspannung · Ausgangsspannung
Latest MESSOTRON-MBI manuals
Messotron MBI 50.43/44 Datasheet
Datasheet 1 pages · 31 KB · DETechnical data sheet for Messotron MBI 50.43/44 power supply series.
Which document do I need?
Datasheet
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in MESSOTRON-MBI manuals
What is the operating temperature range?
The unit operates from 0 °C up to 65 °C.
What input voltage does the MBI 50.43/44 accept?
It accepts 230 VAC ±10 % at 40‑60 Hz, with an optional 115 VAC version.
