Featured MEISTER-DKM/TA-资料（德） manuals

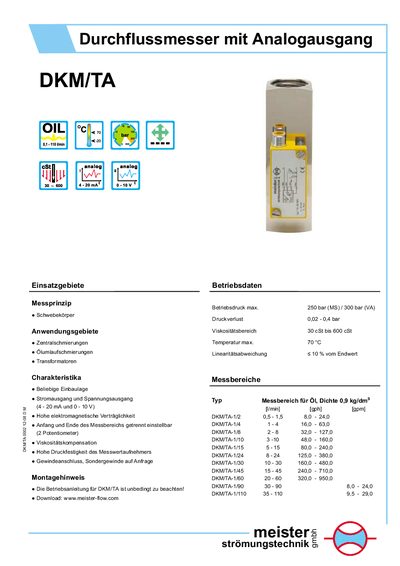

Meister DKM/TA Flow Meter Datasheet
The DKM/TA series is a flow meter with analog output designed for central lubrication and oil‑circulation applications. It measures flow using a floating‑body principle and offers adjustable measurement ranges via two potentiometers.
The device operates up to 250 bar (MS) or 300 bar (VA) pressure, handles viscosities from 30 cSt to 600 cSt, and provides 4‑20 mA current or 0‑10 V voltage output. It is built to IP67 protection standards and can withstand vibration and shock conditions. This manual is written in German.
Covers: Technical Data · Measurement Principle · Application Areas · Installation Note · Technical Drawing
Meister DKM/TA Flow Meter Datasheet
The DKM/TA series is a flow meter with analog output designed for a wide range of viscosities (30 cSt – 600 cSt) and temperatures up to 70 °C. It operates at a maximum pressure of 250 bar (MS) or 300 bar (VA) and features a low pressure loss of 0.02 – 0.4 bar.
Electrical outputs are available as a 4‑20 mA current loop or a 0‑10 V voltage signal. The device is housed in a PBT‑GF20‑VO plastic case with an IP67 rating, includes short‑circuit protection, and meets vibration (55 Hz, 1 mm) and shock (30 g, 11 ms) requirements. Supply voltage is 15‑30 VDC and the unit operates from –20 °C to +70 °C. This manual is written in German.
Covers: Technical Data · Measurement Principle · Operating Conditions · Electrical Output · Mechanical Construction · Installation Notes
Latest MEISTER-DKM/TA-资料（德） manuals
Meister DKM/TA Flow Meter Datasheet
Datasheet 2 pages · 101 KB · DETechnical specifications and performance data for the Meister DKM/TA flow meter with analog output.
Meister DKM/TA Flow Meter Datasheet
Datasheet 2 pages · 101 KB · DETechnical specifications for the Meister DKM/TA flow meter with analog output.
Which document do I need?
Datasheet
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in MEISTER-DKM/TA-资料（德） manuals
What is the maximum operating pressure of the DKM/TA flow meter?
It can operate up to 250 bar (MS) or 300 bar (VA).
What output signals does the DKM/TA provide?
It provides a 4‑20 mA current loop and a 0‑10 V voltage output.
What is the maximum operating pressure of the DKM/TA flow meter?
The meter can operate up to 250 bar (MS) or 300 bar (VA).
What temperature range can the device operate in?
The device works from –20 °C to +70 °C.
