Featured FPGADEV manuals

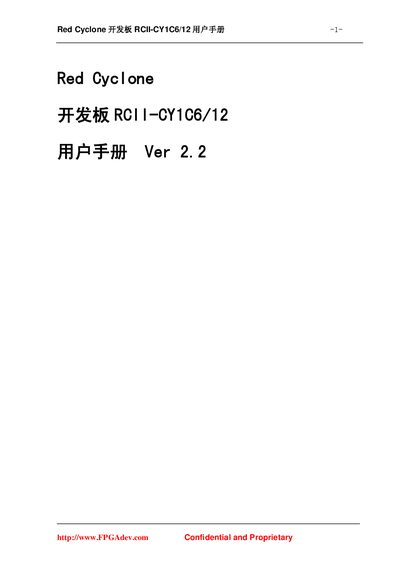

FPGAdev RCII-CY1C6/12 User Manual
The Red Cyclone RCII‑CY1C6/12 development board is aimed at FPGA beginners, intermediate users and hobbyists. It provides a simple, extensible platform that can also serve as a prototype verification board for product development, featuring an Altera Cyclone EP1C6Q240C8 or EP1C12Q240C8 FPGA.
The manual covers the board’s main components, power distribution, reset circuit, clock sources and a wide range of interfaces such as VGA, PS/2 mouse/keyboard, RS‑232, character LCD, USB 2.0, high‑speed SRAM/SDRAM, Flash memory and several expansion boards for video, audio and networking. This manual is written in Chinese.
Covers: Main Components and Features · Switches, Buttons and Seven‑Segment Display · VGA Interface · PS/2 Mouse/Keyboard Interface · RS‑232 Serial Port · Character LCD Interface
Latest FPGADEV manuals
FPGAdev RCII-CY1C6/12 User Manual
User Manual 47 pages · 886 KB · ZHThe FPGAdev RCII-CY1C6/12 User Manual describes the Red Cyclone development board, its components, interfaces and usage instructions.
Which document do I need?
User Manual
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in FPGADEV manuals
What FPGA chips are used on the RCII‑CY1C6/12 board?
The board uses an Altera Cyclone EP1C6Q240C8 or EP1C12Q240C8 FPGA.
Which video output interface does the board provide?
The board provides an 8‑color VGA interface for direct connection to a VGA monitor.
