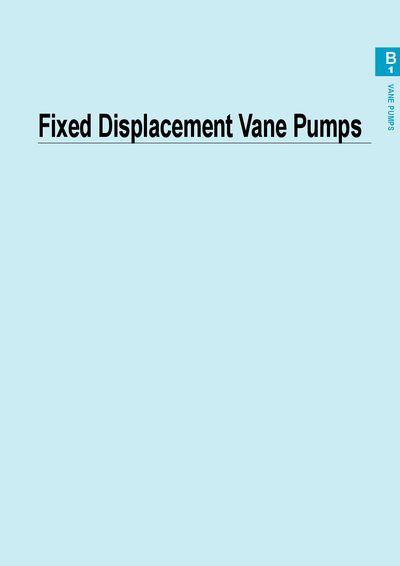

Tokimec Fixed Displacement Vane Pumps User Manual
This manual covers the Tokimec fixed‑displacement vane pump product line, including the SQP, SQPS, SOP and F11‑SQP series. It lists maximum working pressures, speeds, flow rates and weight for each model, and provides detailed tables for flange dimensions and mounting options.
Installation, pump‑prime, and alignment procedures are described, with recommendations for flexible couplings, TIR tolerance of 0.05 mm, and proper piping, filtration and fluid selection for mineral oil, water‑glycol and phosphate‑ester fluids.
Covers: Maximum Working Pressure and Speed · Installation and Pump‑Prime Mover Alignment · Piping, Filtration and Suction Guidelines · Fluid Compatibility and Selection · Series Overview (SQP, SQPS, SOP, F11‑SQP) · Specifications Table
Latest Fixed manuals
Tokimec Fixed Displacement Vane Pumps User Manual
User Manual 61 pages · 3.1 MB · ENThe Tokimec Fixed Displacement Vane Pumps manual provides specifications, installation, alignment, fluid guidelines, and performance data.
Which document do I need?
User Manual
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in Fixed manuals
How should the pump and prime‑mover be aligned?
Shafts should be aligned within a recommended total‑indicator‑reading (TIR) tolerance of 0.05 mm, preferably using a flexible coupling.
What is the recommended suction pipe flow rate?
The suction pipe flow rate should be kept between 0.5 m/s and 1.5 m/s.
