Binzhou Xinda Xin DQZ-IIc Motor Controller User Manual
The DQZ‑IIc is an anti‑sag motor controller designed for retrofit of existing electrical distribution equipment. It is installed on a DIN rail inside a distribution panel and features plug‑in terminal wiring.
The manual covers technical parameters, wiring diagrams, LED status indicators, anti‑sag time settings, and supplier contact information, helping users install, configure, and operate the controller safely. This manual is written in Chinese.
Covers: Product Overview · Technical Parameters · Main Functions · Installation and Wiring · LED Indicators · Anti‑Sag Time Settings
Latest DQZ-IIc manuals
Binzhou Xinda Xin DQZ-IIc Motor Controller User Manual

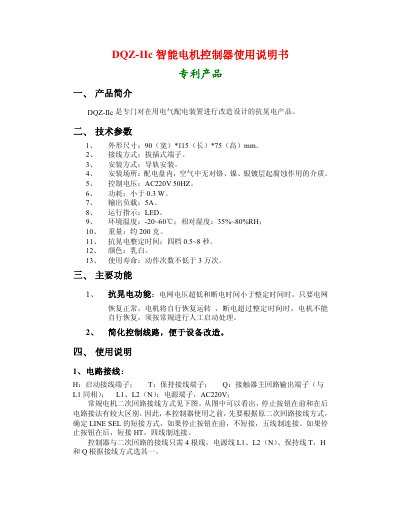

User Manual 2 pages · 109 KB · ZHThe Binzhou Xinda Xin DQZ‑IIc motor controller user manual provides specifications, wiring instructions, and operation details.
Which document do I need?
User Manual
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in DQZ-IIc manuals
How does the anti‑sag function work?
If the grid voltage drops and the power outage is shorter than the set time, the motor automatically restarts when voltage recovers; if the outage exceeds the set time, manual start is required.
From: Binzhou Xinda Xin DQZ-IIc Motor Controller User Manual
What terminals are used for wiring the controller?
H is the start terminal, T is the hold terminal, Q is the contactor main‑circuit output (in phase with L1), and L1/L2(N) are the AC 220 V power terminals.
From: Binzhou Xinda Xin DQZ-IIc Motor Controller User Manual
