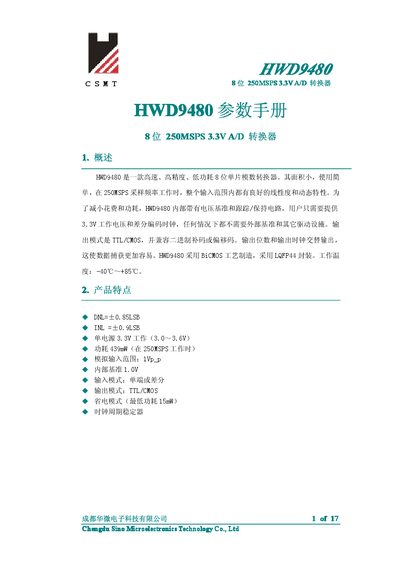

Sino Microelectronics HWD9480 Datasheet
The HWD9480 is a high‑speed, high‑precision, low‑power 8‑bit ADC that operates at up to 250 MSPS with a 3.3 V supply. It features internal 1.0 V reference, TTL/CMOS output, and supports both single‑ended and differential inputs.
The device is supplied in an LQFP‑44 package and is rated for operation from –40 °C to +85 °C. Detailed pin assignments, electrical characteristics, and performance parameters are provided in the following sections. This manual is written in Chinese.
Covers: Overview · Key Features · Pin Information · Electrical Characteristics · Package Dimensions · Absolute Maximum Ratings
